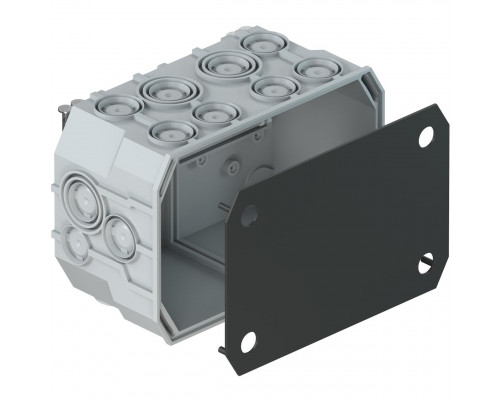

Flush-mounted junction box - Type 1
KAISER wire-pull casings ensure expert cable routing through conduit networks. According to DIN 18015-1, conduit lengths of more than 15 m and with more than two bends require wire-pull casings that allow cables to be added or retrofitted at any time. WIre-pull casings provide multiple conduit entry options and maximum free space to ensure a continuous cable network, including with subsequent changes to the electrical installation.
- Quick and secure installation using pre-inserted nails
- Clean stripping where exposed concrete is required
- High dimensional stability, no internal support required
- Multiple conduit entry options
- Stackable
Break-out openings Ø 20 mm
2Combination conduit entries M20/25
14Combination conduit entries M20/25/32
6Depth
95 mmDispatch
5Length
170 mmMaterial
PolyethyleneNumber of nails
4Width
115 mmОтзывов: 0
