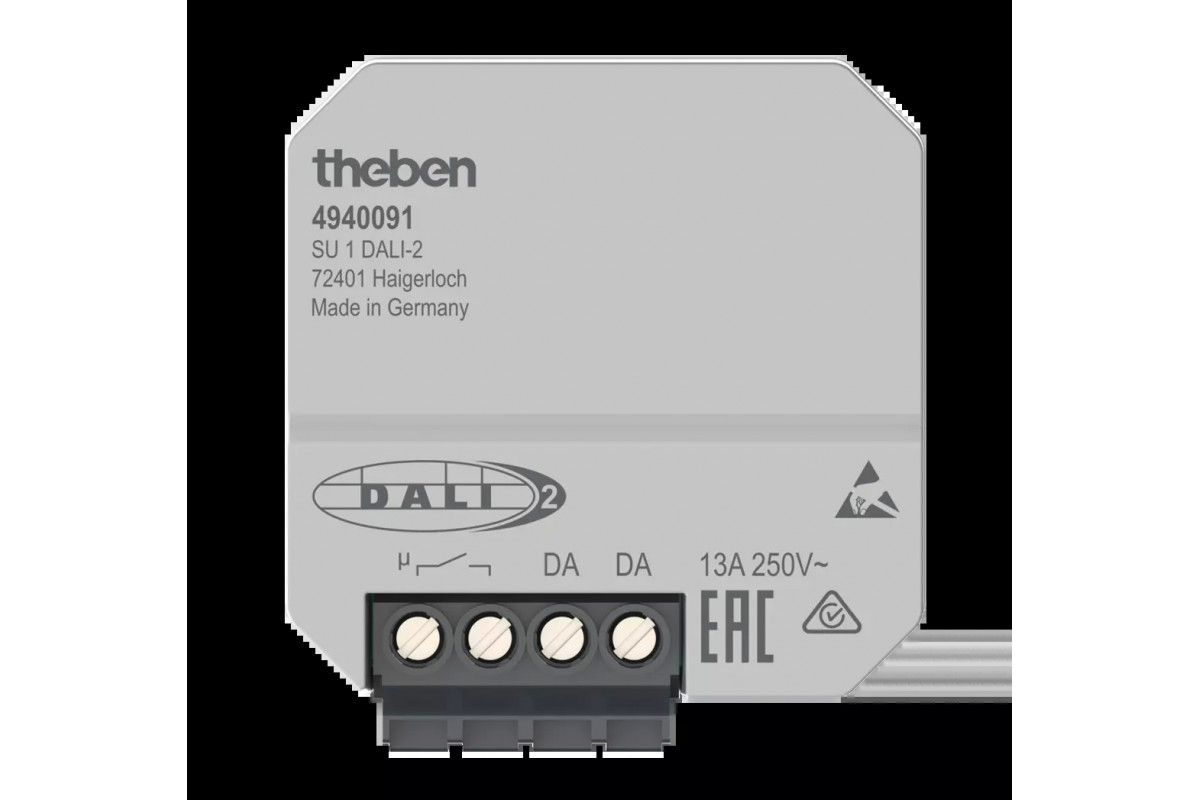

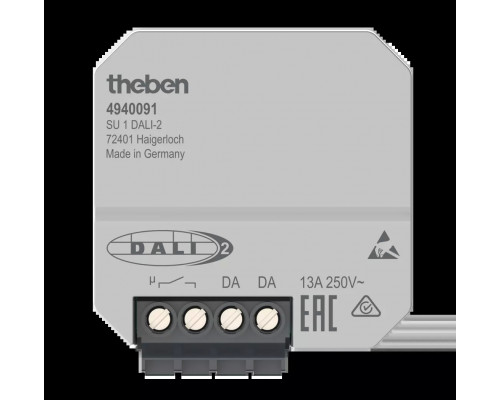

SU 1 DALI-2

Function description

• 1-way DALI-2 switching actuator flush-mounted
• For the control of loads with 230 V AC mains voltage such as lamps, fans, pumps, etc.
• Additionally suitable for applications with extra-low voltage or control of a higher-level control system (HVAC), etc.
• Compact relay module for direct control of loads via the DALI bus according to IEC 62386 part 208
• Powerful relay suitable for loads with high inrush current such as LED luminaires
• Adjustable switch-on level after bus voltage is removed
• The switching thresholds of the relay can be easily adjusted via the DALI bus
• One DALI bus device and can be addressed accordingly according to 62386 part 102
• Power supply via the DALI bus
• Simple installation in commercially available flush-mounted boxes
