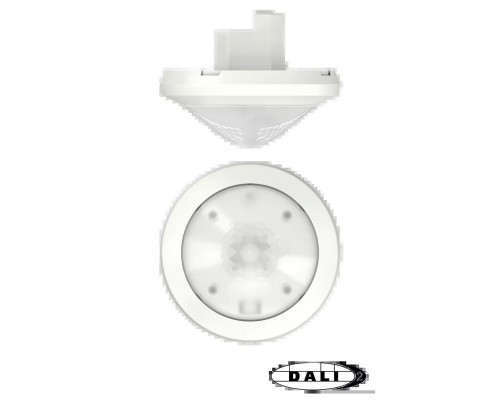

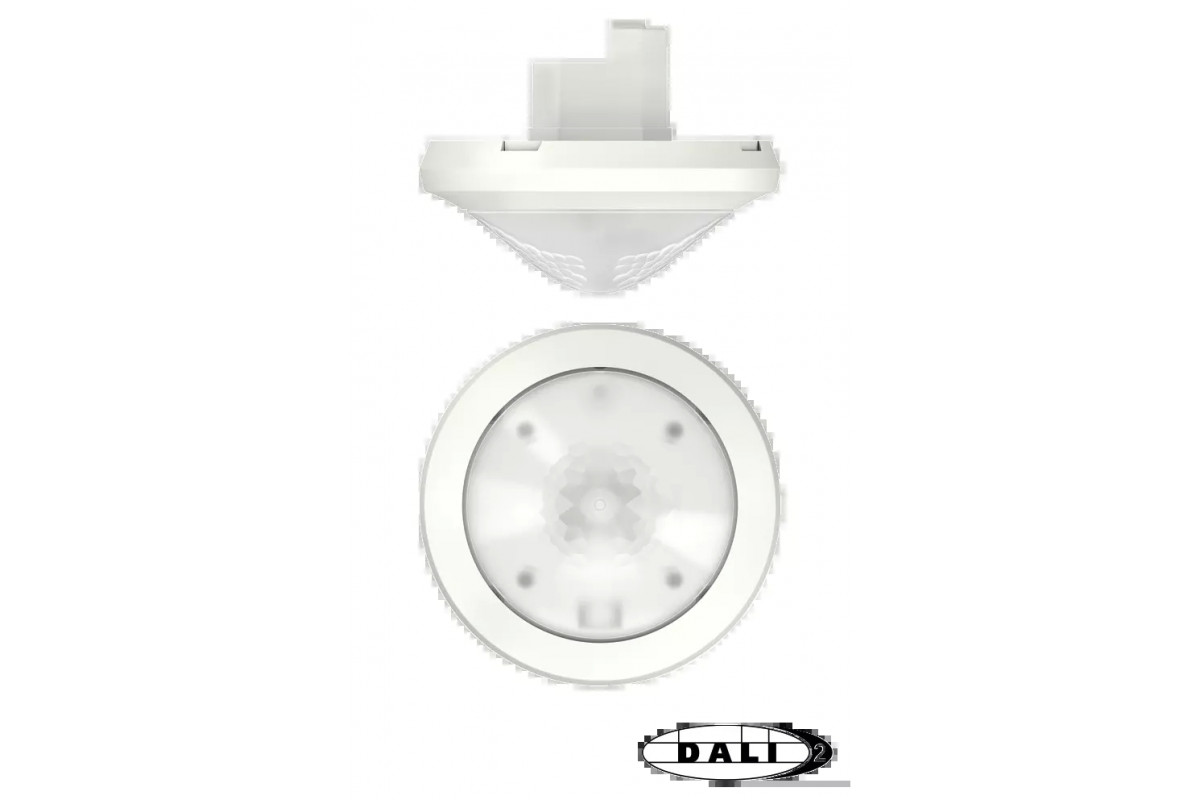

thePassa P360-221 DALI UP WH
Модель:
4720Артикул:
2010340Наличие:
Есть в наличии
0.00 LEI
Ambient temperature
-15°C ... 50°CColour
WhiteFunction description
- Passive infra-red presence detector for flush-mounted ceiling installation, DALI-2 certified
- Rectangular detection area 360°, 30 x 4,5 m, (135 m2) at mounting height 3 m, for corridors and storage areas, with 2 individually connectable and disconnectable detection zones
- 2 channels light DALI-2 addressable or 1 chanel light DALI-2 in broadcast mode
- DALI-2 technology according to IEC 62386 Parts 101 and 103
- Flexible assignment of up to 2 light groups towards one DALI line
- Easy, intuitive configuration of the DALI groups
- Up to 2 push-button inputs
- Using of conventional push-buttons for maximum design freedom
- Switch or constant light control mode with stand-by function
- Dimmable lighting in switch mode with stand-by function
Ambient temperature
-15°C ... 50°CColour
WhiteControl output
100 mADetection angle
360°Detection range
150 m² (30,0 x 5 m)Frequency
50 - 60 HzInstallation height
2 - 6 mInstallation type
Ceiling installationLamp types
Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDsLight measurement
Mixed light measurementLight switch-off delay
10 s - 60 minMax. cable cross section
max. 2 x 2,5 mm²Maximum height
15 mMinimum height
1.7 mOperating voltage
110 V AC - 230 V ACOuput light
DALI-interface according to IEC SN EN 62 386 for max. 50 DALI devicesPower consumption
≤0.4 WSetting range brightness
10 - 3000 lxSize of concealed housing
55 mmStand-by brightness
1 - 25 %Stand-by time light
0 s - 60 min / onSwitching output
DALIType of connection
Screw terminalsType of protection
IP 54 (when fitted)Отзывов: 0
