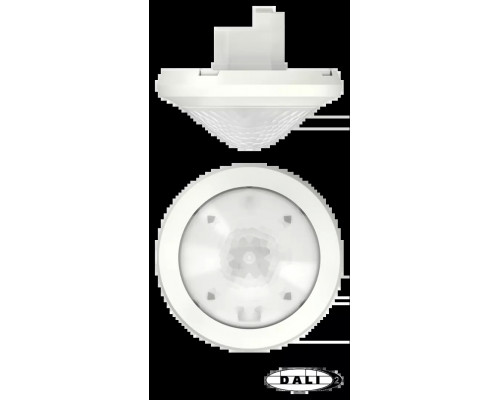

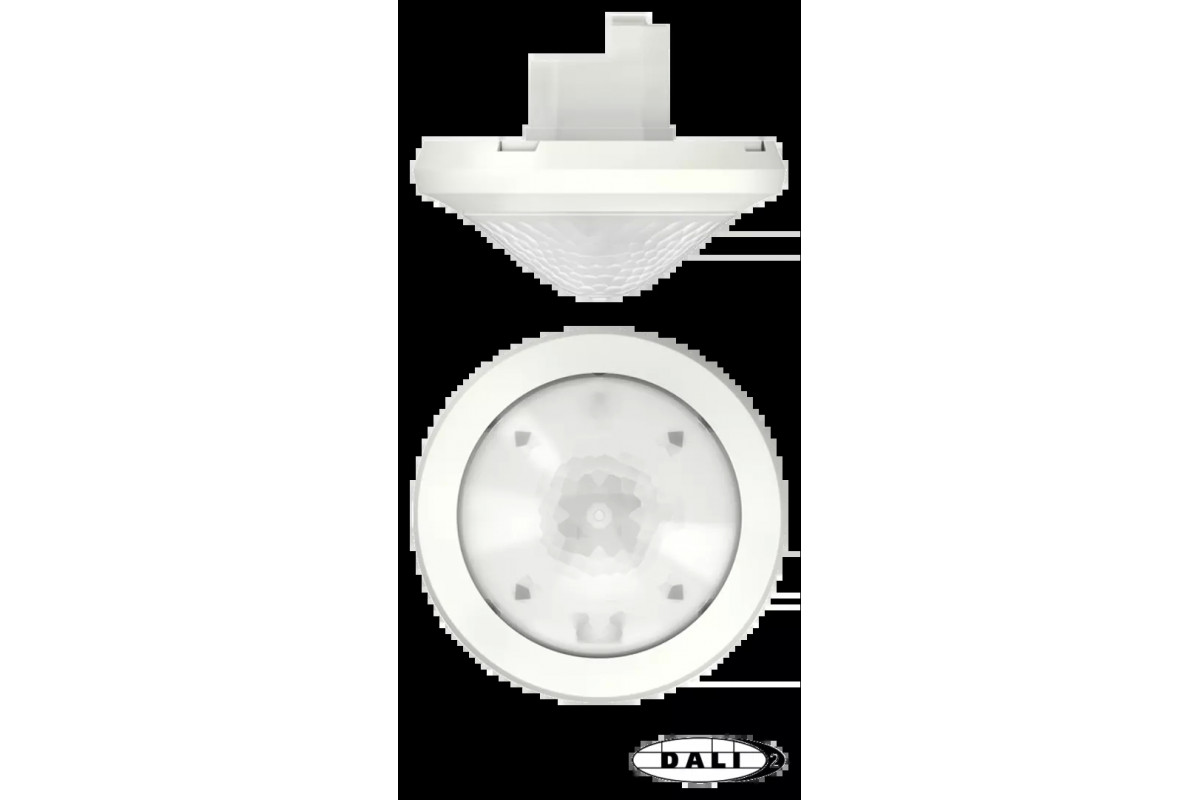

theRonda S360 DALI-2 S UP WH
Модель:
4713Артикул:
2080590Наличие:
Есть в наличии
0.00 LEI
Ambient temperature
-15°C ... 50°CDetection angle
360°Function description
- Passive infra-red presence sensor for flush-mounted ceiling installation, DALI-2 certified
- Circular detection area 360°, Ø 8 m, (50 m2) at mounting height 3 m

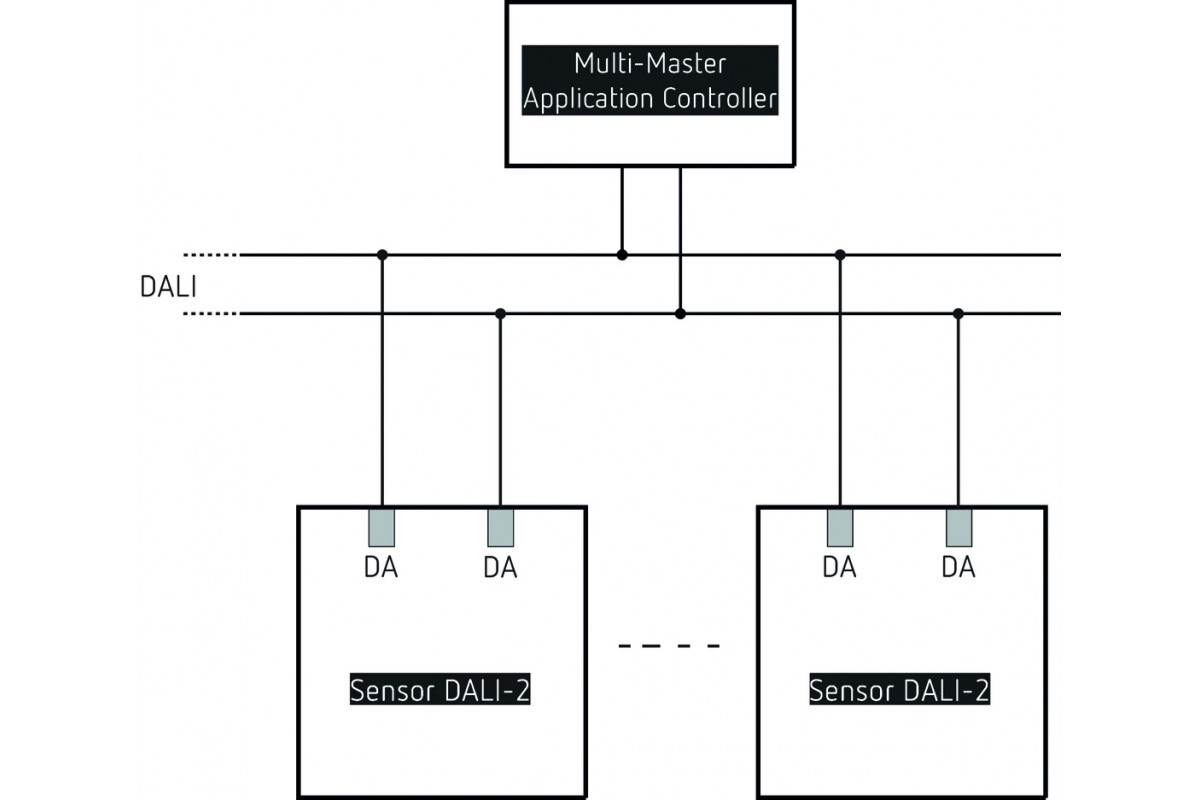

- This device provides information about presence and brightness in the form of a DALI telegram in line with IEC 62386 Part 303/304
- Area restriction with cover clips (optional)
- 1 instance for presence
- Mixed light measurement
- 1 instance for brightness
- Easy to calibrate brightness measurement
- Test mode for checking function and detection area
- Configurable detection sensitivity
Ambient temperature
-15°C ... 50°CDetection angle
360°Detection range
50 m² (ø 8 m | 360°)Installation height
2 - 4 mInstallation type
Ceiling installationLight measurement
Mixed light measurementMax. cable cross section
max. 2 x 2,5 mm²Minimum height
1.7 mOperating voltage
DALIPower consumption
≤10 mASetting range brightness

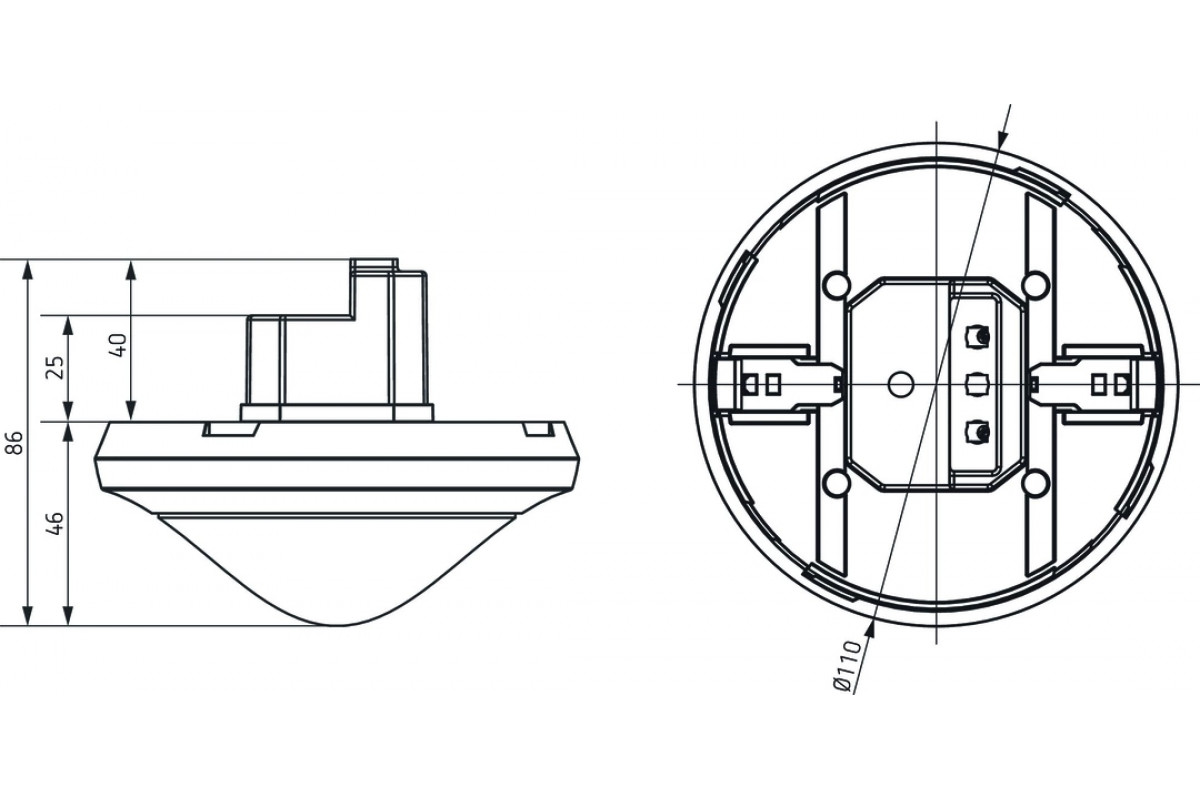

10 - 10000 lxSize of concealed housing
55 mmSwitching output
Sensor DALIType of protection
IP 54 (when fitted)Отзывов: 0
