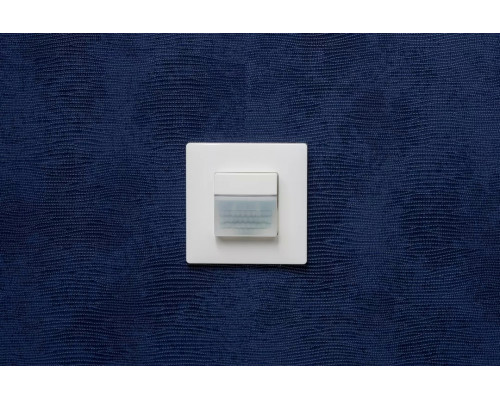

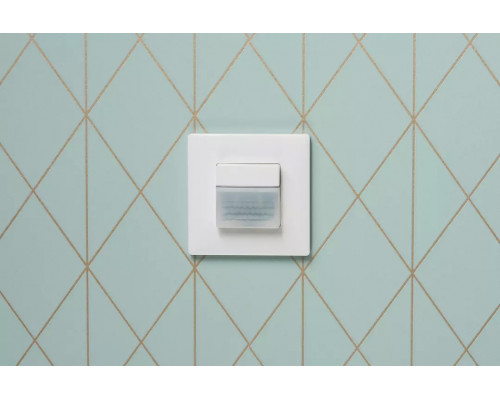

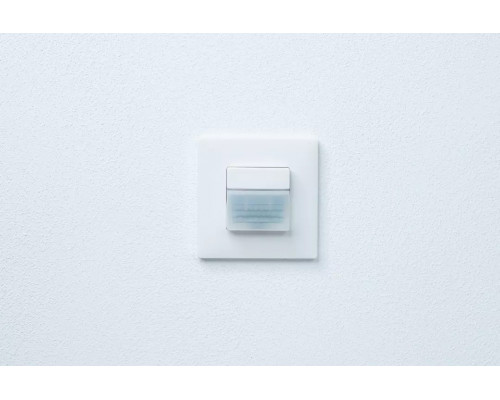

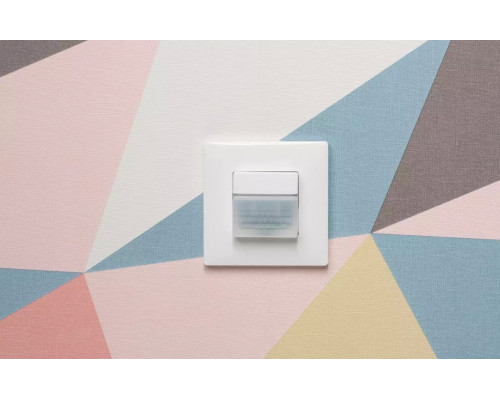

theMura S180-100 B UP
Модель:
4731Артикул:
2060750Наличие:
Есть в наличии
0.00 LEI
-15°C ... 45°C
Type of protection170°
Ambient temperatureFunction description
- Passive infra-red motion detector for wall installation
- Square detection area 170°, 14 x 17 m (238 m2)

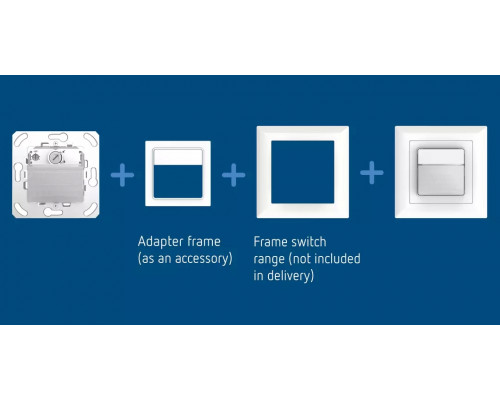

- Without frame, adapter frames for common switch ranges available as accessory
- 1 channel light
- Fully or semi-automatic operation

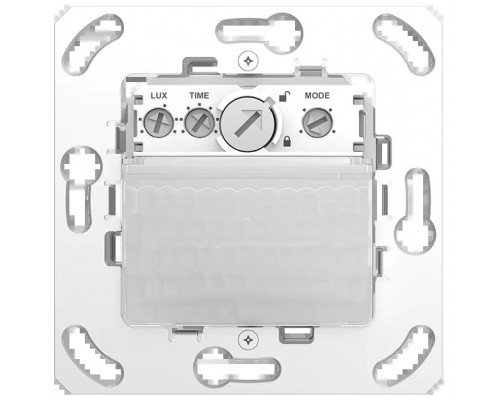

- Adjustable brightness switching value, teach-in function
- Staircase light function
- Switch-on delay configurable

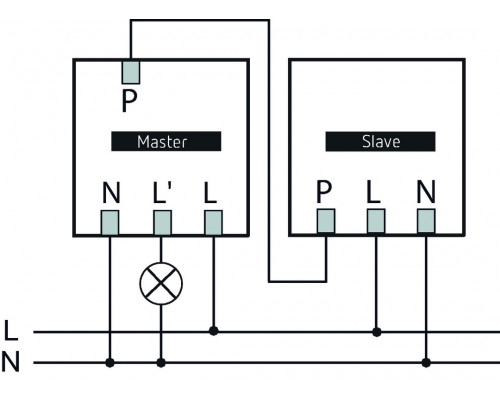

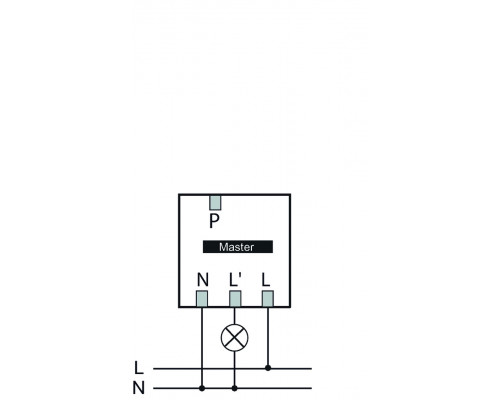

- Extension of detection area via master/slave switching
- Ready for immediate use due to factory presetting
-15°C ... 45°C
Type of protection170°
Ambient temperature238 m² (14 x 17 m)
Detection angle450 W
Type of connection55 mm
Switching outputColour
WhiteFrequency
50 - 60 HzIncandescent/halogen lamp load
2300 WInrush current
max. 600 A / 200 µsInstallation height
0.8 - 1.2 mInstallation type
Flush-mounted wall installationIP 20
Lamp types
Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDsLED lamp 40 W
LED lamp 2-8 WLight
Detection rangeLight measurement
Mixed light measurementLight switch-off delay
Impuls, 10 s - 30 minOperating voltage
230 V ACPower consumption
~0.4 WSetting range brightness
5 - 1000 lxSpring terminals
Size of concealed housingОтзывов: 0
