theRonda P360 DALI-2 S UP WH
Модель:
4780Артикул:
2080090Наличие:
Есть в наличии
0.00 LEI
Ambient temperature
-15°C ... 50°CDetection angle
360°Function description

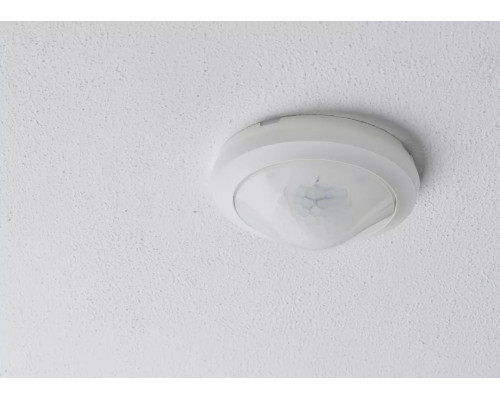

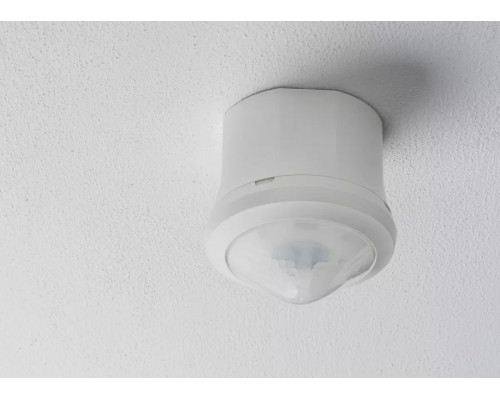

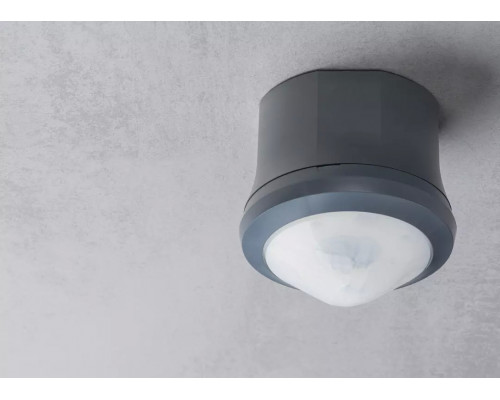

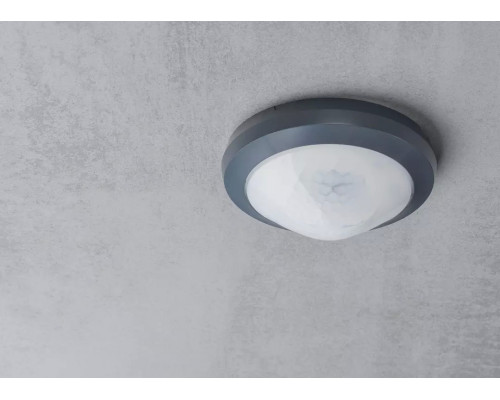

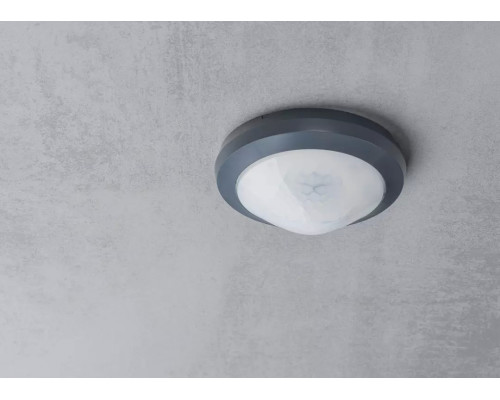

- Passive infra-red presence sensor for flush-mounted ceiling installation, DALI-2 certified
- Circular detection area 360°, Ø 24 m, (452 m2) at mounting height 3 m

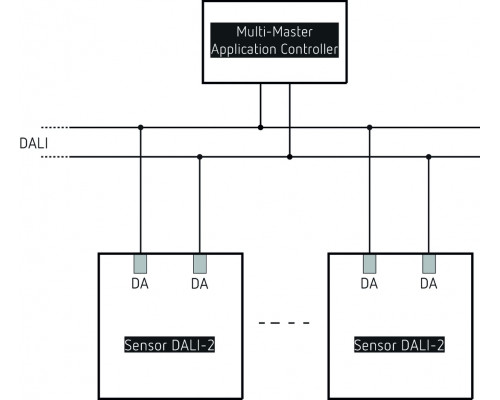

- This device provides information about presence and brightness in the form of a DALI telegram in line with IEC 62386 Part 303/304
- 1 instance for presence
- 3 mixed light measurements
- 4 instances for brightness – integral/interior/centre/window
- Easy to calibrate brightness measurement
- Test mode for checking function and detection area
- Configurable detection sensitivity
- Can be configured via DALI bus or remote control
Ambient temperature
-15°C ... 50°CDetection angle
360°Detection range
452 m² (ø 24 m | 360°)Installation height
2 - 10 mInstallation type
Ceiling installationLight measurement
Mixed light measurementMax. cable cross section
max. 2 x 2,5 mm²Maximum height
15 mMinimum height
1.7 mOperating voltage
DALIPower consumption
≤10 mASetting range brightness

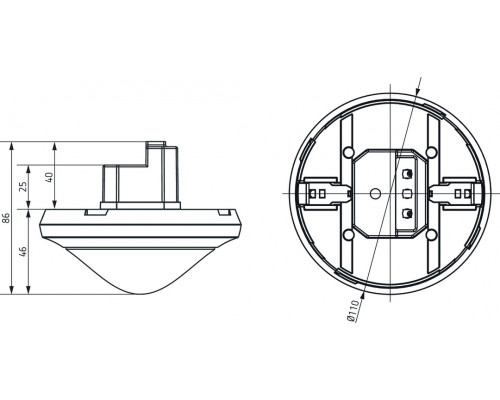

10 - 10000 lxSize of concealed housing
55 mmSwitching output
Sensor DALIType of protection
IP 54 (when fitted)Отзывов: 0
