theLuxa P220 WH
Модель:
4747Артикул:
1010605Наличие:
Есть в наличии
1746.00 LEI
-25°C ... 45°C
Protection class600 W
Lamp typesFunction description
- Motion detector (PIR)
- Automatic lighting control based on presence and brightness
- 220° detection angle
- For outdoor use

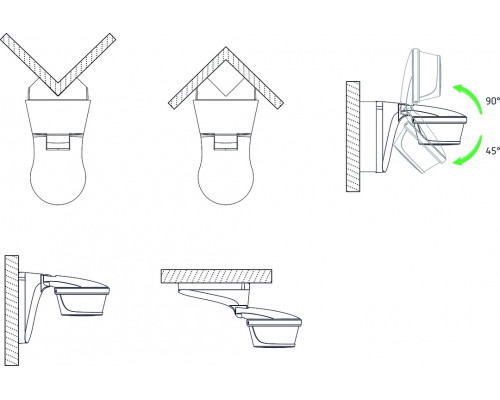

- For installation on walls and ceilings
- For larger, commercial outdoors properties such as offices, public buildings, hotels, schools, car parks and warehouses
- Adjustable brightness switching value and switch-off delay
- Sensitivity can be reduced to limit detection area
- Area limit via lens attachment
- Mixed light measurement suitable for the control of fluorescent, incandescent, halogen lamps and LEDs
-25°C ... 45°C
Protection class600 W
Lamp typesColour
White (similar RAL 9010)Detection angle
220°Energy saving lamps
300 WFluorescent lamp load (conventional) parallel-corrected
1300 VA 140 µFFrequency
50 HzII
Type of protectionIncandescent/halogen lamp load
2300 WIncandescent/halogen lamps, fluorescent lamps, Energy saving lam
Detection rangeInrush current
max. 800 A / 200 µsInstallation height
2 - 4 mInstallation type
Wall and ceiling installation, OutdoorIP 55
LED lamp 60 W
LED lamp 2-8 WLight measurement
Mixed light measurementLight switch-off delay
1 s - 20 minNumber of channels
1Operating voltage
230 V ACSemicircular, Semicircular, Semicircular, Semicircular, Semicirc
Remote controlledSetting range brightness
5 lx - 1000 lxStand-by consumption
~0.3 WSwitching capacity
10 A at 230 V AC, cos φ = 1, 10 AX at 230 V AC, cos φ = 0.3Switching output
LightОтзывов: 0
