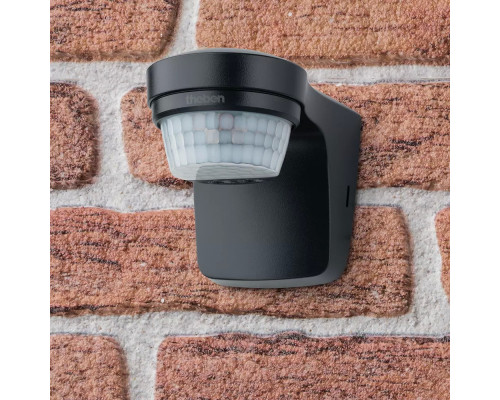

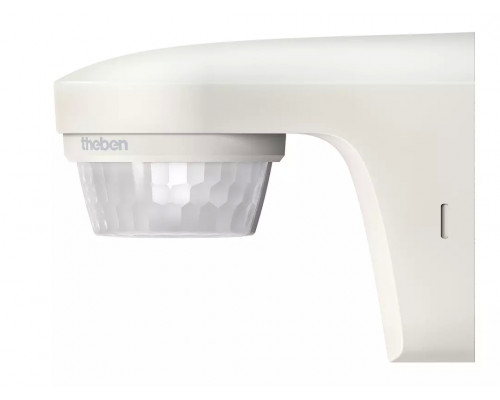

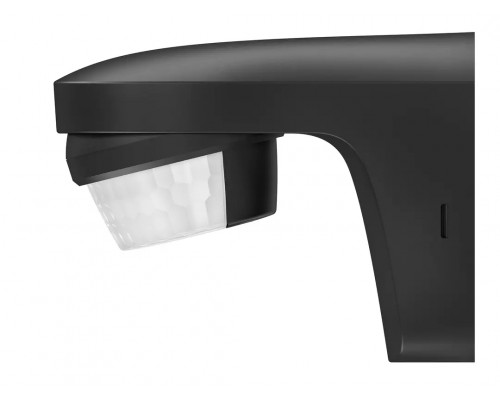

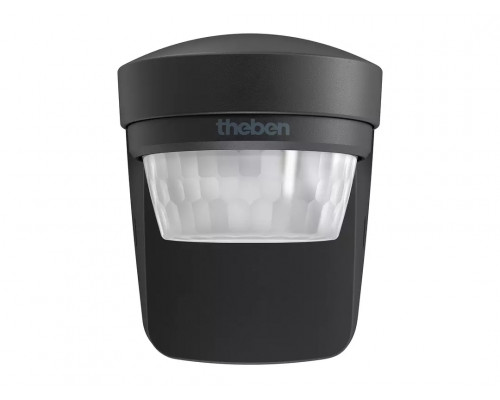

theLuxa S180 BK
_nnSD_4-1200x800.jpg)
_nnSD_4-74x74.jpg)
Модель:
4741Артикул:
1010506Наличие:
Есть в наличии
776.00 LEI
-25°C ... 45°C
Impact resistance500 W
Lamp typesFunction description
- Passive infra-red motion detector
- For outdoor use
- Additional creep under protection

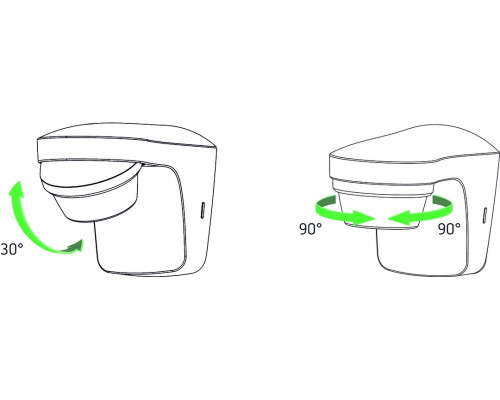

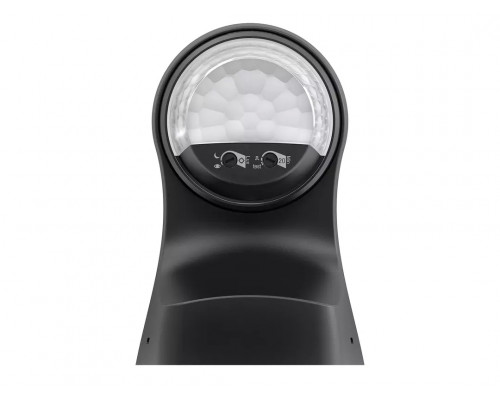

- Sensor head can be turned by ± 90° horizontally and by 30° downwards
- Adjustable brightness switching value and switch-off delay
- Mixed light measurement suitable for the control of fluorescent, incandescent, halogen lamps and LEDs
- Zero-cross switching for relay-saving switching and high lamp loads
- Teach-in of current brightness value possible
- Pulse function
- Test function for checking detection area
-25°C ... 45°C
Impact resistance500 W
Lamp typesColour
Black (similar RAL 9005)Detection angle
180°Energy saving lamps
250 WFluorescent lamp load (conventional) not corrected
2300 VAFluorescent lamp load (conventional) parallel-corrected
1200 VA 120 µFFluorescent lamp load (conventional) series-corrected
2300 VAFluorescent lamp load (electronic ballast)
1000 WFrequency
50 HzII
Type of protectionIK04
Protection classIncandescent/halogen lamp load
2300 WIncandescent/halogen lamps, fluorescent lamps, Energy saving lam
Detection rangeInrush current
max. 300 A / 200 µsInstallation height
2 - 4 mInstallation type

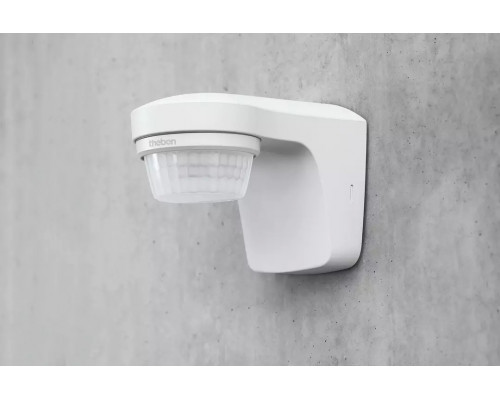

Wall installation, OutdoorIP 55
LED lamp 50 W
LED lamp 2-8 WLight measurement
Mixed light measurementLight switch-off delay
1 s - 20 minNumber of channels
1Operating voltage
230 V ACSemicircular, Semicircular, Semicircular, Semicircular, Semicirc
Remote controlledSetting range brightness
5 lx - 1000 lxStand-by consumption
~0.9 WSwitching capacity
10 A at 230 V AC, cos φ = 1, 6 A at 230 V AC, cos φ = 0.6, 3 AX at 230 V AC, cos φ = 0.3Switching output
LightОтзывов: 0
