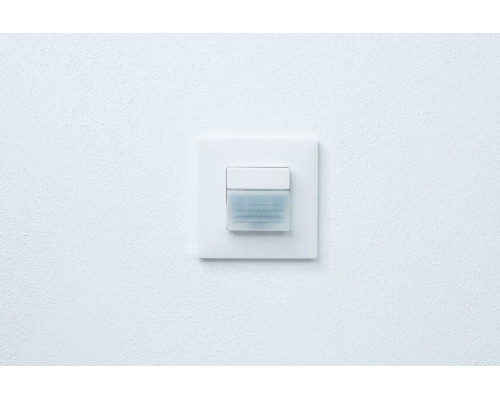

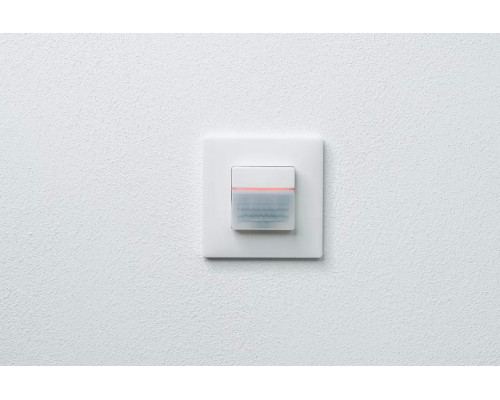

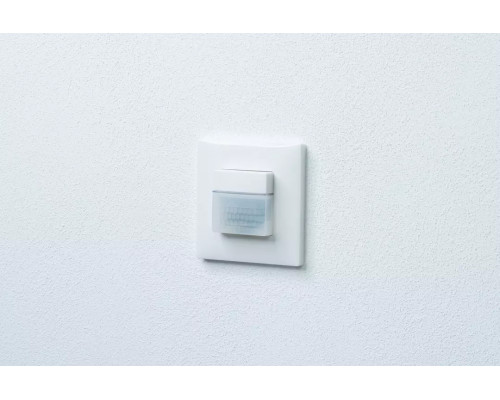

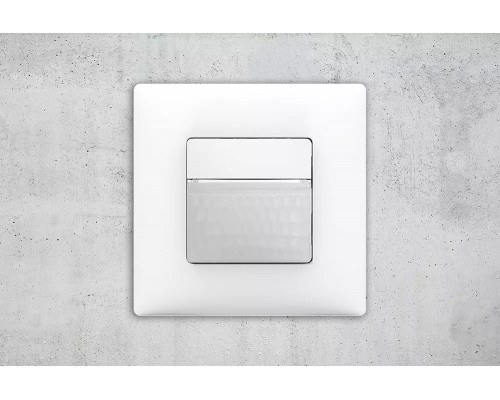

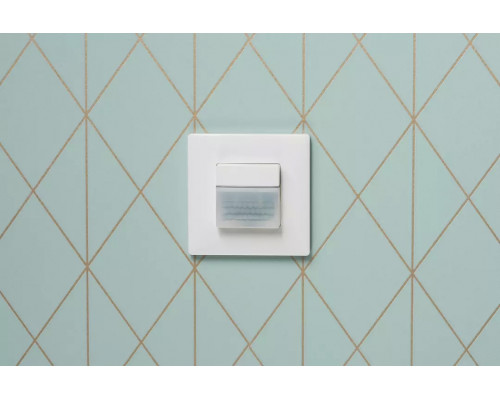

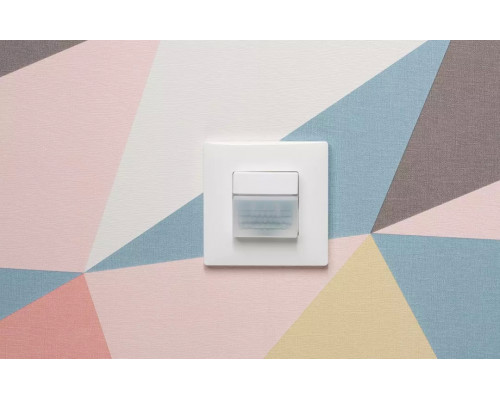

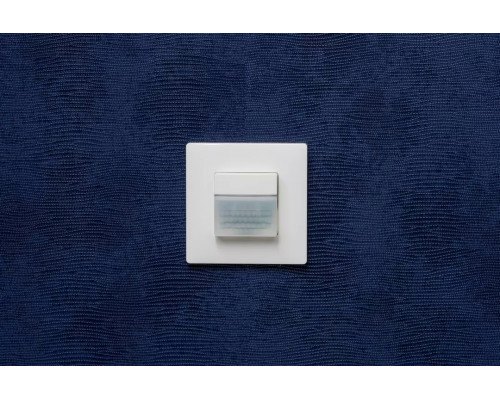

theMura S180-100 2W UP WH
Модель:
4738Артикул:
2060670Наличие:
Есть в наличии
0.00 LEI
Ambient temperature
-15°C ... 45°CColour
WhiteFunction description
- Passive infra-red motion detector for wall installation
- Square detection area 170°, 14 x 17 m (238 m2)

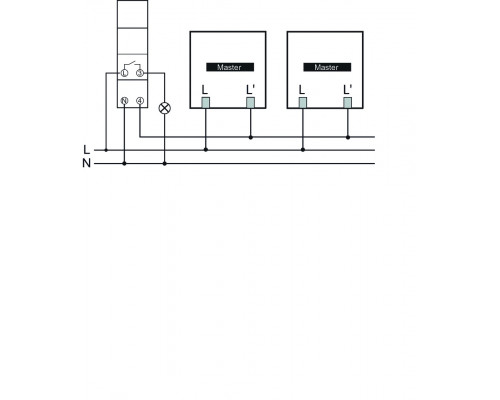

- 1 channel light, 2-wire version in combination with an ELPA staircase time switch for switching the lamp loads
- Adjustable brightness switching value, teach-in function
- Ideal for replacing existing buttons
- Switch-on delay configurable on the staircase time switch
- Parallel connection possible (up to 12 detectors towards an ELPA)
- Restriction of detection area possible
- Mixed light measurement suitable for the control of fluorescent, incandescent, halogen lamps and LEDs
- Integrated button (can be blocked)
Ambient temperature
-15°C ... 45°CColour
WhiteDetection angle
170°Detection range
238 m² (14 x 17 m)Frequency
50 - 60 HzInstallation height
0.8 - 1.2 mInstallation type
Flush-mounted wall installationLight measurement
Mixed light measurementOperating voltage
230 V ACPower consumption
~0.4 WSetting range brightness

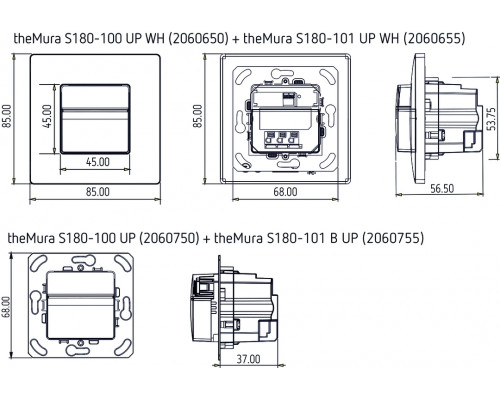

5 - 1000 lxSize of concealed housing
55 mmSwitching output
LightType of connection
Spring terminalsType of protection
IP 20Отзывов: 0
