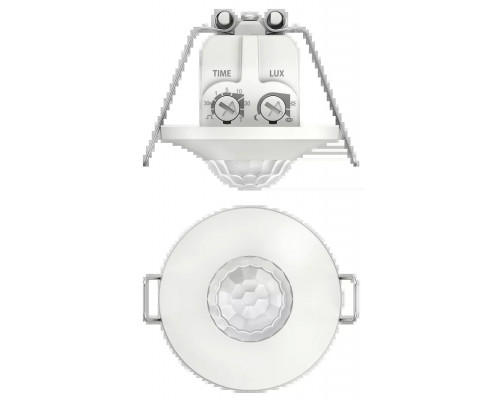

thePiccola P360-100 DE WH
Модель:
4815Артикул:
2090200Наличие:
Есть в наличии
2787.00 LEI
-20°C ... 50°C
Type of protection360°
Ambient temperatureFunction description

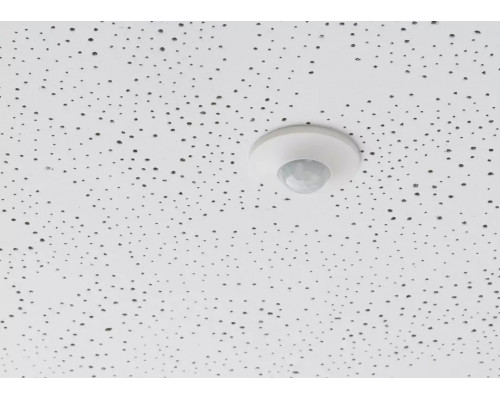

- Passive infra-red presence detector for ceiling installation in false ceilings
- Circular detection area 360°, up to Ø 8 m (50 m2) at mounting height 2.5 m
- 1 channel light (Relay, 230 V)
- Automatic presence- and brightness-dependent control for lighting
- Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs
- Channel A light: relay, 230 V
- Choice of fully or semi-automatic operation
- Brightness switching value configurable, teach-in function
- Pulse function for staircase light time switch
- Time delay configurable
-20°C ... 50°C
Type of protection360°
Ambient temperature50 m² (ø 8 m | 360°)
Detection angle600 W
Switching outputColour
WhiteFluorescent lamp load (conventional) not corrected
2000 VAFluorescent lamp load (conventional) parallel-corrected
1300 VA 140 µFFluorescent lamp load (conventional) series-corrected
2000 VAFluorescent lamp load (electronic ballast)
1200 WFrequency
50 - 60 HzIncandescent/halogen lamp load
2000 WInstallation height
2 - 6 mInstallation type
Ceiling mountingIP 55 (Sensor), IP 20 (power module)
Lamp types
Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDsLED lamp 55 W
LED lamp 2-8 WLight
Detection rangeLight measurement
Mixed light measurementLight switch-off delay
30 s - 30 minOperating voltage
110 V AC - 240 V ACPower consumption
~0.4 WSetting range brightness
5 - 1000 lxОтзывов: 0
