thePrema P360 Slave E UP BK
Модель:
4758Артикул:
2070132Наличие:
Есть в наличии
0.00 LEI
Ambient temperature
0°C ... 50°CColour
BlackFunction description

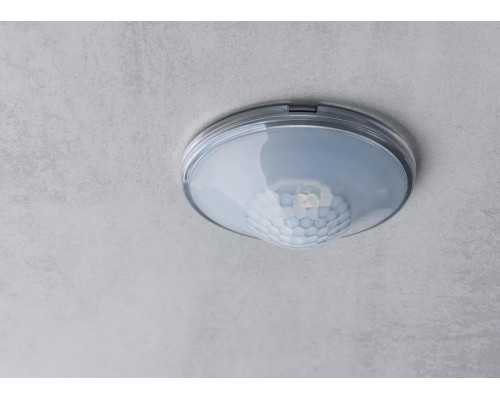

- Passive infra-red presence detector for flush-mounted ceiling installation
- Square detection area 360°
- Slave version for thePrema master presence detectors
- Ready for immediate use due to factory preset
- Test mode for checking function and detection area
- Extension of detection area via Master/Slave or Master/Master switching, a maximum of 10 detectors can be switched in parallel with each other

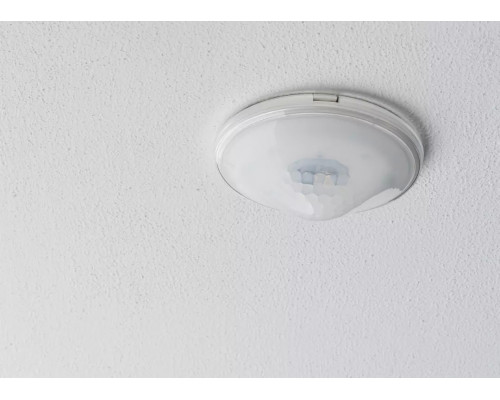

- Ceiling installation in flush-mounted socket

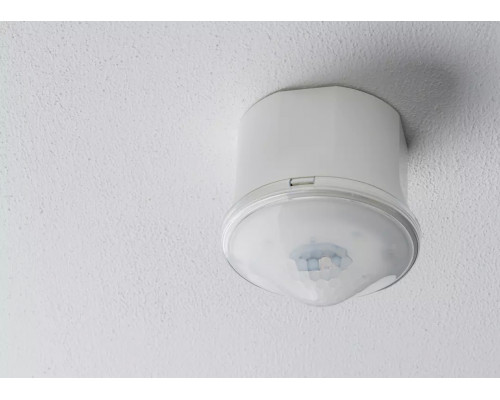

- Ceiling installation also possible with surface-mounted frame
- User remote control theSenda S, management remote control SendoPro (optional)
- * According to warranty terms and conditions, see www.theben.de/en/guarantee
Ambient temperature
0°C ... 50°CColour
BlackDetection angle
360°Detection range
81 m² (9,0 x 9,0 m)Frequency
50 - 60 HzInstallation height
2 - 10 mInstallation type
Ceiling installationLamp types
Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDsLight measurement
Mixed light measurementMax. cable cross section
max. 2 x 2,5 mm²Minimum height
1.7 mOperating voltage
110 V AC - 230 V AC ± 10 %Power consumption
~0.1 WSize of concealed housing
55 mmSwitching output
SlaveType of connection
Screw terminalsType of protection
IP 40 (when fitted)Отзывов: 0
