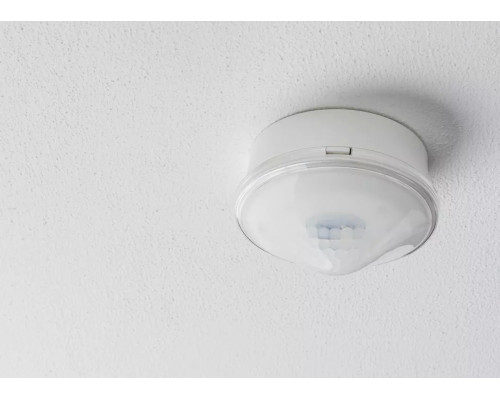

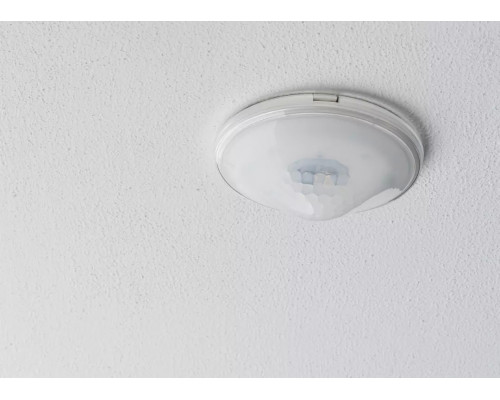

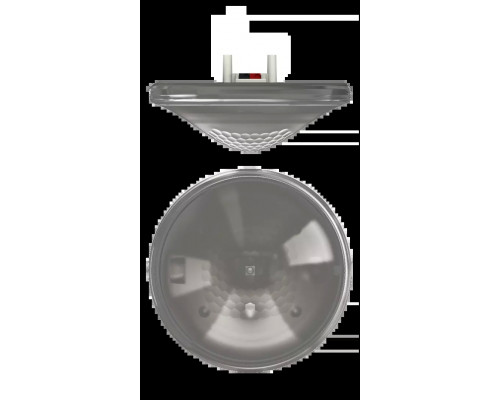

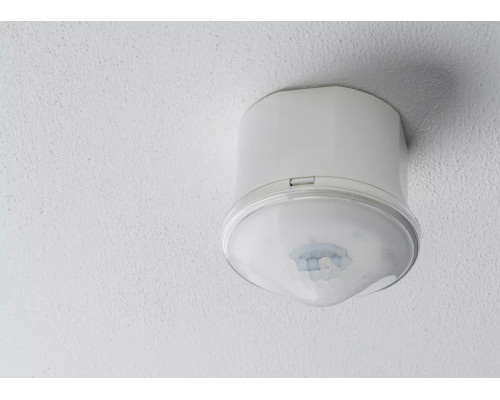

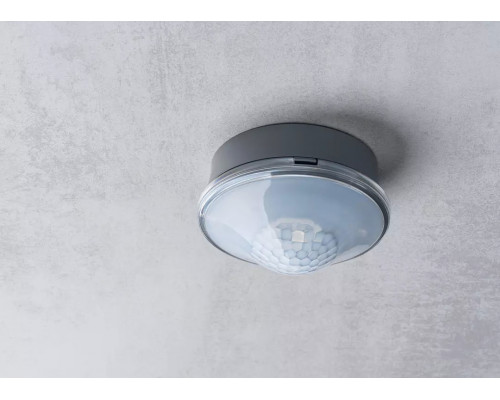

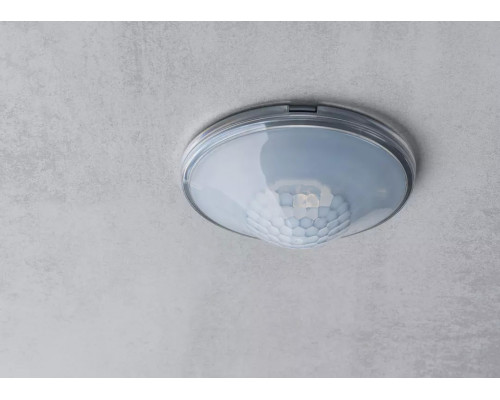

thePrema S360 KNX UP BK
Модель:
4767Артикул:
2079502Наличие:
Есть в наличии
0.00 LEI
Ambient temperature
0°C ... 50°CColour
BlackFunction description
- Passive infra-red presence detector KNX for flush-mounted ceiling installation
- Square detection area 360°, 7 x 7 m, (49 m2) at mounting height 3 m
- 2 channels light and 2 channels presence
- 2 channel light C1, C2 with 1 light measurement
- 2 presence channels C4, C5 can be set individually
- Adaptable 1 channel light measurement
- Mixed light measurement suitable for LEDs, fluorescent lamps (FL/PL/ESL) and halogen/incandescent lamps
- Can be used as fully or semi-automatic, switchable
- Switch or constant light control mode with stand-by function
- Dimmable lighting in switch mode with stand-by function
Ambient temperature
0°C ... 50°CColour
BlackDetection angle
360°Detection range
49 m² (7,0 x 7,0 m)Installation height
2 - 3.5 mInstallation type
Ceiling installationLamp types
Energy saving lamps, fluorescent lamps, Incandescent/halogen lamps, LEDsLight measurement
Mixed light measurementLight switch-off delay
30 s - 60 minMeasuring range brightness
5 - 3000 lxMinimum height
1.7 mPresence switch-off delay
10 s - 120 minSwitch-on delay presence
10 s - 30 min / inactiveType of connection
KNX bus terminalType of protection
IP 40 (when fitted)Отзывов: 0
