theRonda S360-100 UP WH
Модель:
4790Артикул:
2080520Наличие:
Есть в наличии
0.00 LEI
-15°C ... 50°C
Impact resistance360°
Ambient temperatureFunction description
- Passive infra-red presence detector for flush-mounted ceiling installation
- Circular detection area 360°, up to Ø 8 m (50 m2) at mounting height 3 m
- 1 channel light (Relay, 230 V)
- Automatic presence- and brightness-dependent control for lighting
- Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs
- Choice of fully or semi-automatic operation
- Adjustable brightness switching value, teach-in function
- Reduction of switch-off delay time in the event of short presence (brief-presence)

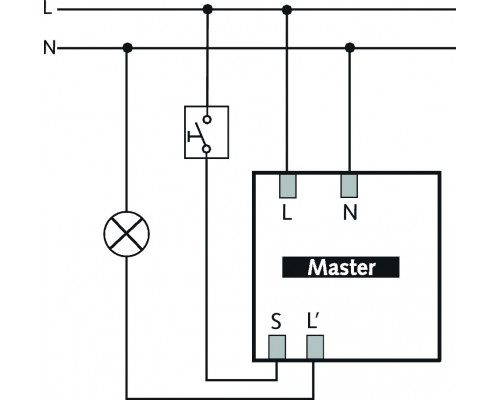

- Connection option for sensors or switches for manual switching with automatic recognition of sensor/switch
- Pulse function for staircase light time switch
-15°C ... 50°C
Impact resistance360°
Ambient temperature50 m² (ø 8 m | 360°)
Detection angle55 mm
Switching output600 W
Type of connectionColour
WhiteCompact and flourescent lamps
1150 VA (cos φ = 0,5)Frequency
50 - 60 HzIK04
Type of protectionIncandescent/halogen lamp load
2300 WInrush current
max. 800 A / 200 µsInstallation height
2 - 4 mInstallation type
Ceiling installationIP 54 (when fitted)
Lamp types
Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDsLED lamp 60 W
LED lamp 2-8 WLight
Detection rangeLight measurement
Mixed light measurementLight switch-off delay
10 s - 60 minmax. 2 x 2,5 mm²
Size of concealed housingMinimum height
1.7 mOperating voltage
110 V AC - 230 V ACPower consumption
~0.1 WScrew terminals
Max. cable cross sectionSetting range brightness
30 - 3000 lxОтзывов: 0
