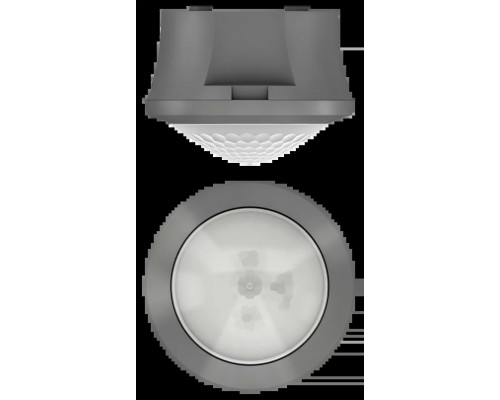

theRonda S360 KNX AP GR
Модель:
4796Артикул:
2089551Наличие:
Есть в наличии
0.00 LEI
Ambient temperature
-15°C ... 50°CColour
GreyFunction description
- Passive infra-red presence detector KNX for ceiling installation
- Circular detection area 360°,Ø 8 m, (50 m2) at mounting height 3 m
- 2 channels light and 2 channels presence
- Mixed light measurement
- 2 light channels C1, C2
- Switching operation or constant light control with standby function (orientation light)
- Switching mode with dimmable lighting
- Choice of fully or semi-automatic
- Brightness switching value or set point value can be set in lux by using parameters, the object or via remote control
- Teach-in of the brightness switching value or the set point value
Ambient temperature
-15°C ... 50°CColour
GreyDetection angle
360°Detection range
50 m² (ø 8 m | 360°)Installation height
2 - 4 mInstallation type
Ceiling installationLamp types
Energy saving lamps, fluorescent lamps, Incandescent/halogen lamps, LEDsLight measurement
Mixed light measurementLight switch-off delay
30 s - 60 minMeasuring range brightness
10 - 3000 lxMinimum height
1.7 mPresence switch-off delay
10 s - 120 minSwitch-on delay presence
10 s - 30 min / inactiveType of connection
KNX bus terminalType of protection
IP 54Отзывов: 0
