theRonda S360 Slave UP WH
Модель:
4788Артикул:
2080530Наличие:
Есть в наличии
0.00 LEI
Ambient temperature
-15°C ... 50°CColour
WhiteFunction description
- Passive infra-red presence detector for flush-mounted ceiling installation
- Circular detection area 360°, up to Ø 8 m (50 m2) at mounting height 3 m
- Slave version for theRonda master presence detectors
- Test mode for checking function and detection area

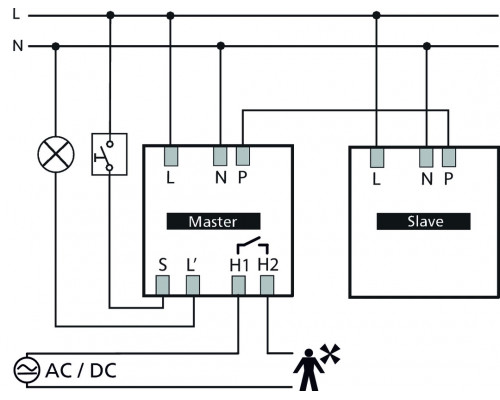

- Extension of detection area via Master/Slave or Master/Master switching, a maximum of 10 detectors can be switched in parallel with each other
- Ceiling installation in flush-mounted socket
- Ceiling installation also possible with surface-mounted frame
- User remote control theSenda S, service remote control theSenda P, management remote control SendoPro (optional)
Ambient temperature
-15°C ... 50°CColour
WhiteDetection angle
360°Detection range
50 m² (ø 8 m | 360°)Frequency
50 - 60 HzInstallation height
2 - 4 mInstallation type
Ceiling installationLight measurement
Mixed light measurementMax. cable cross section
max. 2 x 2,5 mm²Minimum height
1.7 mOperating voltage
110 V AC - 230 V ACPower consumption
~0.1 WSize of concealed housing
55 mmSwitching output
SlaveType of connection
Screw terminalsType of protection
IP 54 (when fitted)Отзывов: 0
