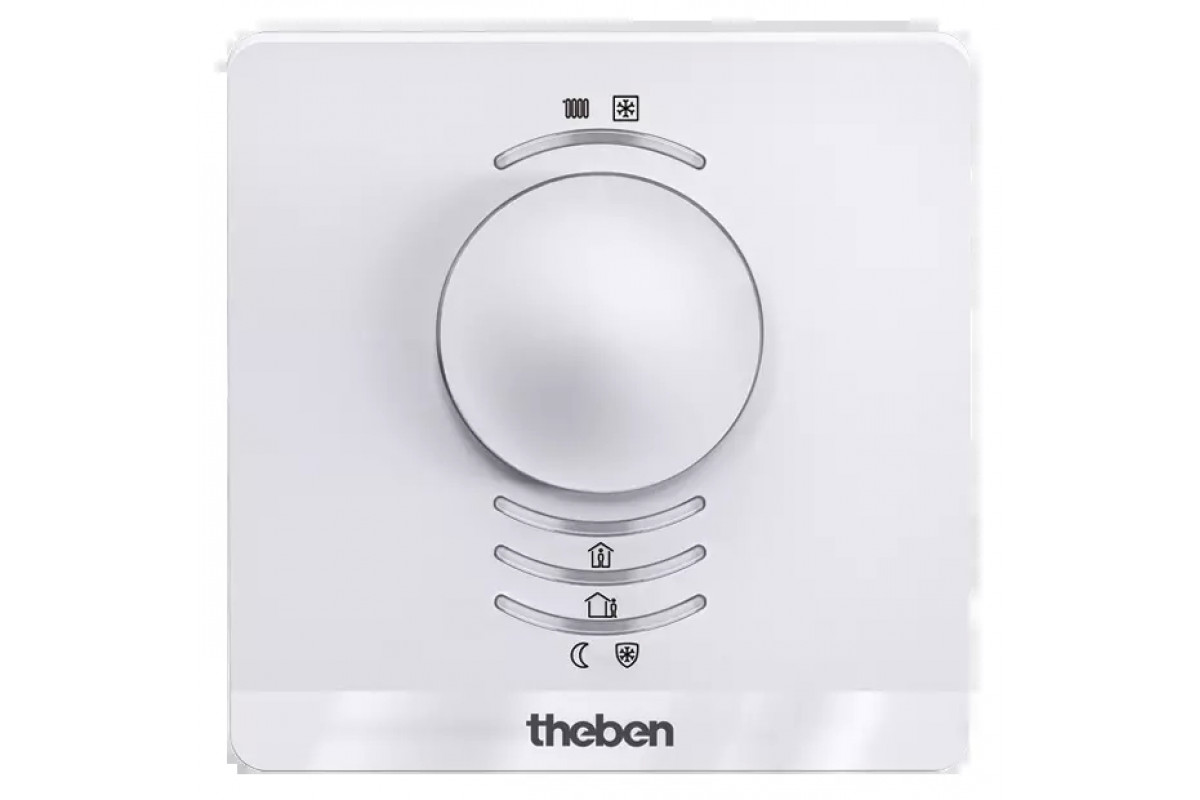

RAMSES 718 S KNX
Модель:
5248Артикул:
7189200Наличие:
Есть в наличии
0.00 LEI
Ambient temperature
5°C ... 40°CContact current
0.5 mAFunction description
- Individual room thermostat
- For controlling heating actuators or motorised actuators
- Without controls directly on the thermostat
- Can be used as a continuous or two point control (can also be combined)
- Temperature sensor can be connected to give remote temperature reading
- Objects for night operation (only with "old" operation mode selection) presence, window/frost
- LED (red) for heating mode, (blue) for cooling mode
- 4 binary inputs for conventional switches/sensors (switch/sensor, dimmer, blinds, valuator, LED control)
Ambient temperature
5°C ... 40°CContact current
0.5 mAContact voltage
5 V Internal providedDisplay
LEDsInstallation type
Surface-mountedInterface extension max.
30 mMeasuring range temperature
-5°C ... 45°CNumber of inputs
4Operating voltage KNX
Bus voltage, ≤12 mAProtection class
III according to EN 60 730-1Setting range temperature
10°C ... 30°CType of connection
Bus connection: KNX bus terminal | Sensor connection: Terminal screwsType of protection
IP 20Отзывов: 0
