RAMSES 722 S
Модель:
5352Артикул:
7220801Наличие:
Есть в наличии
0.00 LEI
Colour
WhiteDisplay
1 LED HeizenFunction description

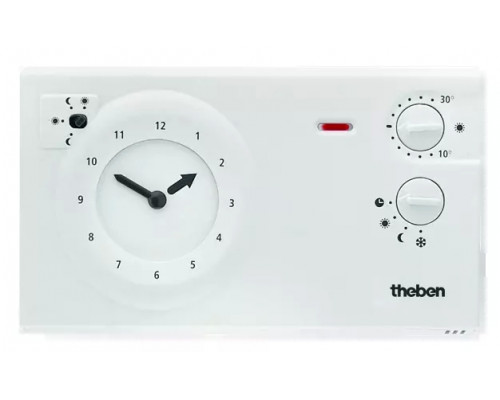

- Analogue clock thermostat with a low profile design for time-dependent monitoring and control of room temperature
- Mains version
- Segment program disc with daily program
- Synchronous motor drive
- Normal and reduced temperature can be set separately
- Electronic temperature control
- Operating point and electronic recirculation are set from the front
- Party switch and program display
- Electronic temperature control
- Selector switch for operating mode: con-tinuous reduced temperature, continuous normal temperature, automatic mode, frost and plant protection +6 °C
Colour
WhiteDisplay
1 LED HeizenFrequency
50 HzInstallation type
Wall installationOperating voltage
230 V ACProgram
Daily programProgrammable every
15 minProtection class
II according to EN 60 730-1Setting range temperature
10°C ... 30°CShortest switching times
15 minStand-by consumption
~1.3 WSuitable for SELV
NoSwitching capacity
6 A at 250 V AC, cos φ = 1, 1 A at 250 V AC, cos φ = 0.6Switching differential
0.4 - 1.2 KSwitching output
Potential-free, not for SELVTime accuracy at 25 °C
Synchronised with mainsType of contact
Changeover contactType of protection
IP 20Отзывов: 0
