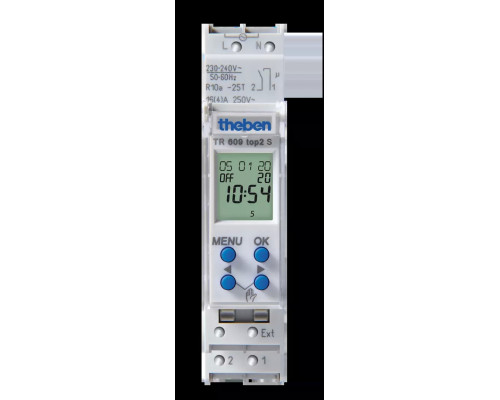

TR 609 top2 S
Модель:
4887Артикул:
6090101Наличие:
Есть в наличии
0.00 LEI
1
Number of memory locations10 years
Switching capacity at 250 V AC, cos φ = 1Function description
- Digital time switch with weekly program
- 1 channel
- 84 memory locations

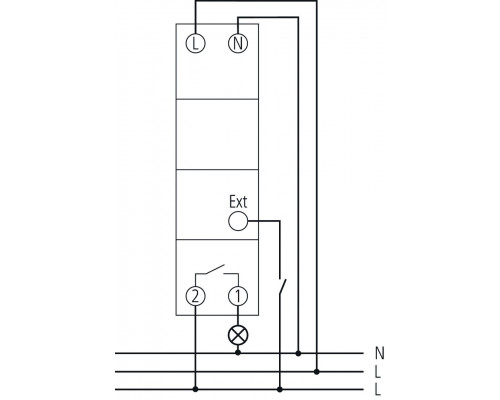

- External input
- Connectable sensors (external selector switch, sequence timer)
- Connectable switches (ON or OFF permanent switching)
- Pulse program
- Cycle program
- Timer countdown
- 2 random programs
1
Number of memory locations10 years
Switching capacity at 250 V AC, cos φ = 116 A
Switching capacity at 250 V AC, cos φ = 0,62000 W
Energy saving lamps300 W
LED lamp 55 W4 A
Incandescent/halogen lamp load84
Power reserveAmbient temperature
-25°C ... 55°CCapacity loss max.
1.2 WDisplay
LCDFluorescent lamp load (conventional) not corrected
2000 VAFluorescent lamp load (conventional) parallel-corrected
1300 W 140 µFFluorescent lamp load (conventional) series-corrected
2000 VAFrequency
50 - 60 HzHousing and insulation material
High-temperature resistant, self-extinguishing thermoplasticInstallation type
DIN railKeyboards
4 touch buttons, 1 reset buttonLED lamp 2-8 W
600 WLED lamp > 8 W
600 WMemory card supplied
ON-OFF, Pulse, Cycle
Number of channelsOpening width
ProgramOperating voltage
230 - 240 V ACProtection class
II according to EN 60 730-1Shortest switching times
1 sStand-by consumption
~0.4 WSwitching capacity min.
~10 mASwitching output
Phase-independentTime accuracy at 25 °C
typical ± 0,25 s/day (quartz)Time basis
QuartzType of connection
DuoFix spring terminalsType of contact
NO contactType of protection
IP 20Voltage
230 V ACWeekly program
Program functionsWidth
1 modulesОтзывов: 0
