SUL 188 hw
Модель:
4662Артикул:
1880108Наличие:
Есть в наличии
0.00 LEI
Ambient temperature
-20°C ... 55°CDrive
Quartz-controlled stepper motorFunction description
- Analogue time switch
- Daily/weekly program and 1/2 day OFF function for the weekdays

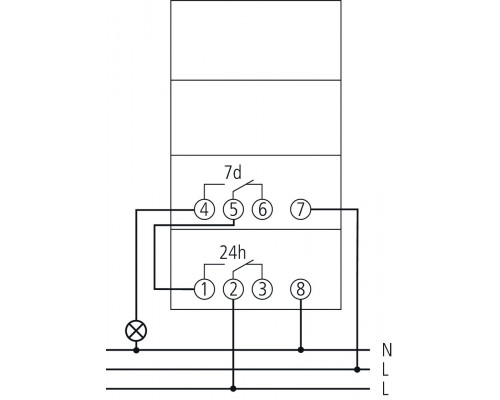

- 1 channel (with series connection of the 2 contacts)
- Tappets and turning segments
- Shortest switching time: 45 minutes (12 hours for the 1/2 day OFF function)
- 6 tappets included in delivery
- With power reserve (NiMH rechargeable battery)
- Quartz controlled
- Tappets
- Screw terminals
Ambient temperature
-20°C ... 55°CDrive
Quartz-controlled stepper motorFrequency
45 - 60 HzHousing and insulation material
High-temperature resistant, self-extinguishing thermoplasticInstallation type
DIN railNumber of channels
1Operating voltage
230 V ACPower reserve
3 daysProgram
Daily programProgrammable every
15 min, 12 hProtection class
II according to EN 60 730-1Shortest switching times
45 min, 12 hStand-by consumption
~0.5 WSwitching capacity at 250 V AC, cos φ = 0,6
4 ASwitching capacity at 250 V AC, cos φ = 1
10 ASwitching output
Potential-free and phase-independentTest approval
VDETime accuracy at 25 °C
≤ ± 1 s/day (quartz)Type of connection
Screw terminalsType of contact
Changeover contactType of protection

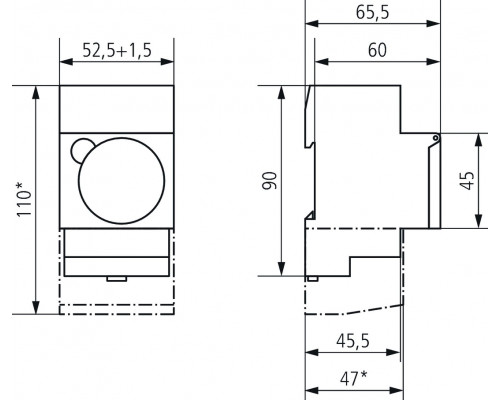

IP 20Width
3 modulesОтзывов: 0
