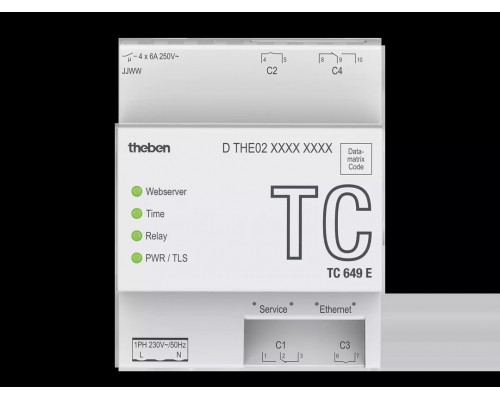

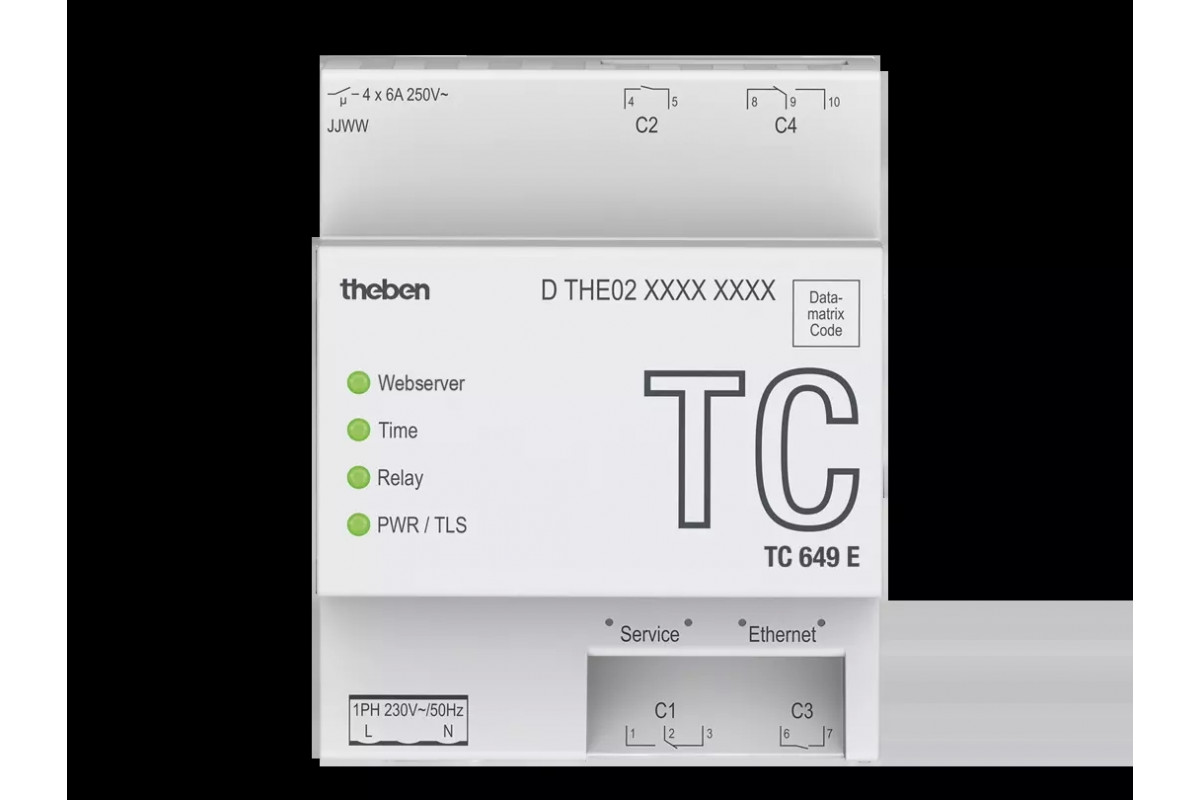

TC 649 E
Модель:
4898Артикул:
6490130Наличие:
Есть в наличии
0.00 LEI
Ambient temperature
-25°C ... 55°CFrequency
50 HzFunction description
- Digital time switch/astro time switch with weekly program and annual program
- With integrated webserver, can be controlled via LAN/smartphone
- 4 channels
- 800 memory programs
- Channel 1 to 4 can be switched over as time or astro time switch program
- 3 special programs per channel: switching program / astro program; Duration Off; Duration Each with year date function
- Local holidays, fixed date ranges, recurring date ranges and Easter-themed holidays
- Astro times with other night interruption/fixed ON circuit
- Permanent ON or OFF switching via LAN switchable
- Pulse program
Ambient temperature
-25°C ... 55°CFrequency
50 HzHousing and insulation material
High-temperature resistant, self-extinguishing thermoplasticInstallation type
DIN railNumber of channels
4Operating voltage
230 V ACProgram
Yearly program, Astronomical programProgram functions
ON-OFF, PulseProtection class
IIShortest switching times
1 sStand-by consumption
~3 WSwitching capacity at 250 V AC, cos φ = 1
6 ASwitching capacity min.
ca. 1 mAType of protection
IP 30Width
4 modulesОтзывов: 0
