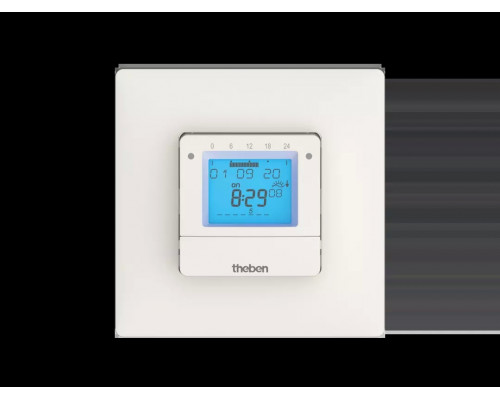

SELEKTA 070 top3 UP

Name: SELEKTA 070 top3 UP
SKU: 0700130
Availability: InStock

Модель:

4911

Артикул:

0700130

Наличие:

Есть в наличии

0.00 LEI

-5°C ... 55°C

1 s

Time accuracy at 25 °C

Все характеристики

0 отзывов

Function description

Astronomical time switch with weekly program for flush-mounted wall-installation
1 channel
Programming by app possible
Safe transfer via optional Bluetooth Low Energy OBELISK top3
Maximum manipulation security, time switch programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 is plugged into the time switch
Astronomical time switch function (automatic calculation of sunrise and sunset times for the whole year)
Offset for adjusting of sunrise and sunset times
3 custom twilight ranges plus adjustable offset (sunset, twilight, darkness)
3 special programs (small annual program)
Astro-pulse

-5°C ... 55°C

1 s

Time accuracy at 25 °C

4 touch buttons

Housing and insulation material

600 W

Shortest switching times

Frequency

50 Hz

High-temperature resistant, self-extinguishing thermoplastic

Type of protection

II according to EN 60 730-1

Ambient temperature

Incandescent/halogen lamp load

2300 W

Installation type

Flush-mounted wall installation

IP 20

Protection class

LED lamp 50 W

LED lamp 2-8 W

Number of channels

Number of memory locations

Operating voltage

230 V AC

Power reserve

6 years

Program

Weekly program

Program functions

Pulse

Quartz

Stand-by consumption

Screw terminals

Keyboards

Switching capacity at 250 V AC, cos φ = 0,6

2 A

Switching capacity at 250 V AC, cos φ = 1

10 A

Type of contact

NO contact

typical ± 0,25 s/day (quartz)

Time basis

~0.4 W

Type of connection
