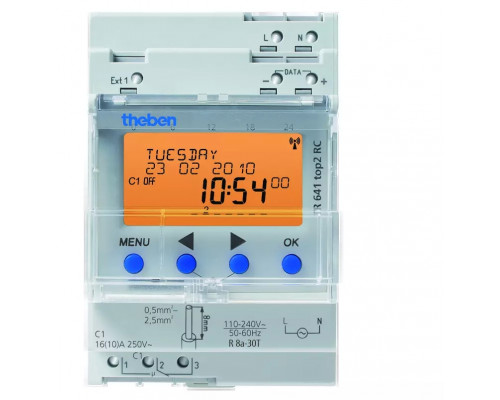

TR 641 top2 RC
Модель:
4682Артикул:
6410300Наличие:
Есть в наличии
0.00 LEI
1
Number of memory locations10 A
Incandescent/halogen lamp loadFunction description
- Digital time switch with yearly and astronomical time program
- Time synchronisation via connection of external DCF or GPS antennas, additional posititioning for astronomical program with GPS
- 1 channel
- External input
- Connectable sensors (external selector switch, sequence timer)
- Connectable switches (ON or OFF permanent switching)
- Extension module can be connected
- Memory card OBELISK top2 included in delivery
- DuoFix spring terminals
- For 2 conductors each
1
Number of memory locations10 A
Incandescent/halogen lamp load1300 W
Energy saving lamps16 A
Switching capacity at 250 V AC, cos φ = 0,618 x 7 W, 15 x 11 W, 13 x 15 W, 13 x 20 W, 11 x 23 W
LED lamp 50 W2600 W
Incandescent/halogen lamp load 120 V37 x 7 W, 30 x 11 W, 26 x 15 W, 26 x 20 W, 11 x 23 W
Energy saving lamps 120 V8 years
Switching capacity at 250 V AC, cos φ = 1800
Power reserveAmbient temperature
-30°C ... 45°CCapacity loss max.
1.1 WDisplay
LCDExterne Antenne anschließbar
Frequency
50 - 60 HzHousing and insulation material
High-temperature resistant, self-extinguishing thermoplasticInstallation type
DIN railKeyboards
4 touch buttonsLED lamp 2-8 W
180 WLED lamp > 8 W
200 WMemory card supplied
ON-OFF, Pulse, Cycle
Number of channelsOpening width
ProgramOperating voltage
110 - 240 V ACProtection class
II according to EN 60 730-1Shortest switching times
1 sStand-by consumption
~1.2 WSwitching capacity min.
ca. 10 mASwitching output
Phase-independentTime accuracy at 25 °C
≤ ± 0,5 s/day (quartz) or DCF77/GPSTime basis
Quartz/DCF77/GPSType of connection
DuoFix spring terminalsType of contact
Changeover contactType of protection
IP 20Voltage
110-240 V ACWidth
3 modulesYearly program, Astronomical program
