TR 642 top2 RC 24V
Модель:
4686Артикул:
6424300Наличие:
Есть в наличии
0.00 LEI
-30°C ... 45°C
1 s
Time accuracy at 25 °CFunction description
- Digital time switch with yearly and astronomical time program

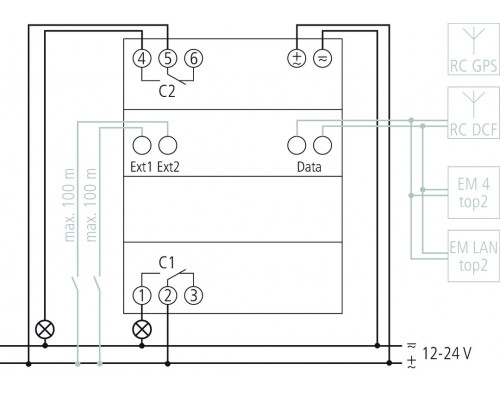

- Time synchronisation via connection of external DCF or GPS antennas, additional posititioning for astronomical program with GPS
- 2 channels
- 2 external inputs
- Connectable sensors (external selector switch, sequence timer)
- Connectable switches (ON or OFF permanent switching)
- Extension module can be connected
- Memory card OBELISK top2 included in delivery
- DuoFix spring terminals
- For 2 conductors each
-30°C ... 45°C
1 s
Time accuracy at 25 °C12-24 V UC
Ambient temperature1400 W
Energy saving lamps16 A
Switching capacity at 250 V AC, cos φ = 0,62
Number of memory locations2 A
Incandescent/halogen lamp load4 touch buttons
Housing and insulation material7 x 7 W, 6 x 11 W, 5 x 15 W, 5 x 20 W, 4 x 23 W
Switching capacity min.8 years
Switching capacity at 250 V AC, cos φ = 1800
Power reserveca. 10 mA
Shortest switching timesDuoFix spring terminals
Externe Antenne anschließbarFrequency
50 - 60 HzHigh-temperature resistant, self-extinguishing thermoplastic
Type of protectionII according to EN 60 730-1
VoltageInstallation type
DIN railIP 20
Protection classLCD
KeyboardsON-OFF, Pulse, Cycle
Number of channelsOpening width
ProgramOperating voltage
12 - 24 V UCQuartz/DCF77/GPS
Stand-by consumptionSwitching output
Phase-independentType of contact
Changeover contactWidth
3 modulesYearly program, Astronomical program
Program functions~1.5 W
Memory card supplied≤ ± 0,5 s/day (quartz) or DCF77/GPS
