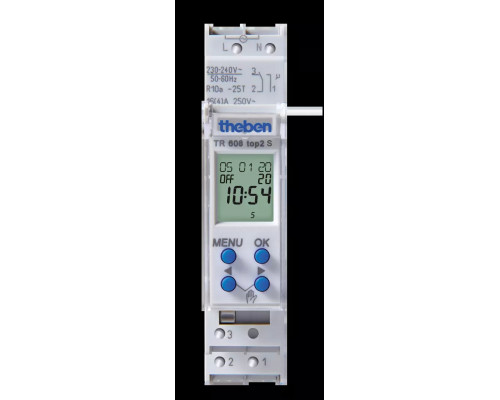

TR 608 top2 S
Модель:
4678Артикул:
6080101Наличие:
Есть в наличии
0.00 LEI
1
Number of memory locations10 years
Switching capacity at 250 V AC, cos φ = 1Function description
- Digital time switch with weekly program
- 1 channel
- 56 memory locations
- DuoFix spring terminals
- For 2 conductors each
- Wire or strand (with or without wire end sleeve)
- Wire diameter: 0.5 - 2.5 mm²
- Button for releasing plug-in connection
- Text-oriented user guidance in display
- Preset date and time
1
Number of memory locations10 years
Switching capacity at 250 V AC, cos φ = 11000 W
Energy saving lamps16 A
Switching capacity at 250 V AC, cos φ = 0,630 W
LED lamp 6 W4 A
Incandescent/halogen lamp load56
Power reserveAmbient temperature
-25°C ... 55°CDisplay
LCDFluorescent lamp load (conventional) not corrected
1000 WFluorescent lamp load (conventional) parallel-corrected
80 W 12 µFFluorescent lamp load (conventional) series-corrected
1000 WFrequency
50 - 60 HzHousing and insulation material
High-temperature resistant, self-extinguishing thermoplasticInstallation type
DIN railKeyboards
4 touch buttons, 1 reset buttonLED lamp 2-8 W
60 WLED lamp > 8 W
60 WMemory card supplied
ON-OFF
Number of channelsOpening width
ProgramOperating voltage
230 - 240 V ACProtection class
II according to EN 60 730-1Shortest switching times
1 minStand-by consumption
~0.41 WSwitching capacity min.
~10 mASwitching output
Phase-independentTime accuracy at 25 °C
typical ± 0,25 s/day (quartz)Time basis
QuartzType of connection
DuoFix spring terminalsType of contact
Changeover contactType of protection
IP 20Voltage
230 V ACWeekly program
Program functionsWidth
1 modulesОтзывов: 0
