TR 612 top3
Модель:
4670Артикул:
6120130Наличие:
Есть в наличии
0.00 LEI
10 A
Incandescent/halogen lamp load10 years
Switching capacity at 250 V AC, cos φ = 1Function description
- Digital time switch with weekly program
- 2 channels
- Programming by app possible
- Safe transfer via optional Bluetooth Low Energy OBELISK top3
- Maximum manipulation security, time switch programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 is plugged into the time switch
- 100 % compatible with top2

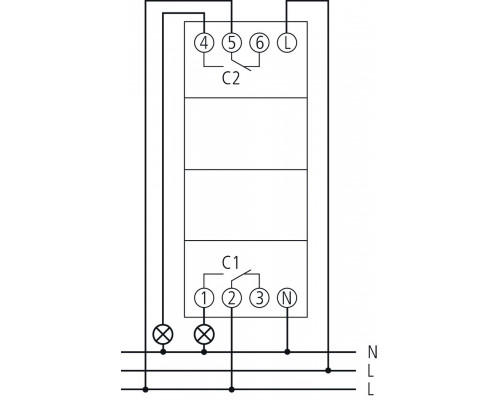

- DuoFix spring terminals
- For 2 conductors each
- Wire or strand (with or without wire end sleeve)
- Wire diameter: 0.5 - 2.5 mm²
10 A
Incandescent/halogen lamp load10 years
Switching capacity at 250 V AC, cos φ = 11100 W
LED lamp 50 W16 A
Switching capacity at 250 V AC, cos φ = 0,62
Number of memory locations2600 W
Energy saving lamps56
Power reserveAmbient temperature
-30°C ... 55°CDisplay
LCDFluorescent lamp load (conventional) not corrected
2600 VAFluorescent lamp load (conventional) parallel-corrected
1300 VA 130 µFFluorescent lamp load (conventional) series-corrected
2600 VAFrequency
50 - 60 HzHousing and insulation material
High-temperature resistant, self-extinguishing thermoplasticInrush current
max. 800 A / 200 µsInstallation type
DIN railKeyboards
4 touch buttonsLED lamp 2-8 W
600 WLED lamp > 8 W
600 WON-OFF
Number of channelsOpening width
ProgramOperating voltage
230 V ACPredeccessor
6120100, TR 612 top2Protection class
II according to EN 60 730-1Shortest switching times
1 minStand-by consumption
~0.4 WSwitching capacity min.
ca. 10 mASwitching output
Phase-independentTime accuracy at 25 °C
typical ± 0,25 s/day (quartz)Time basis
QuartzType of connection
DuoFix spring terminalsType of contact
Two-way changeover contactType of protection
IP 20Voltage
230 V ACWeekly program

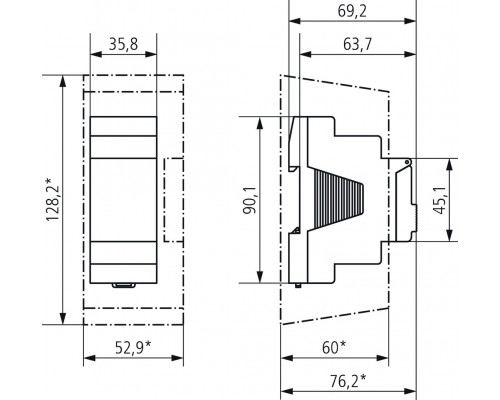

Program functionsWidth
2 modulesОтзывов: 0
