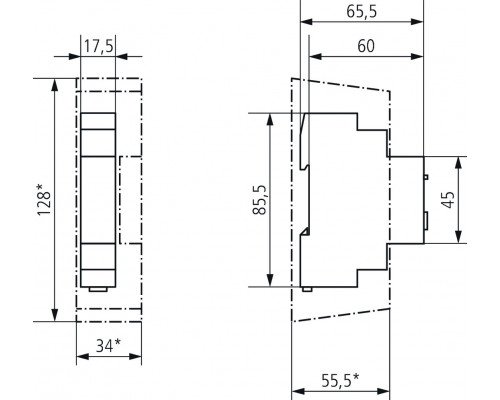

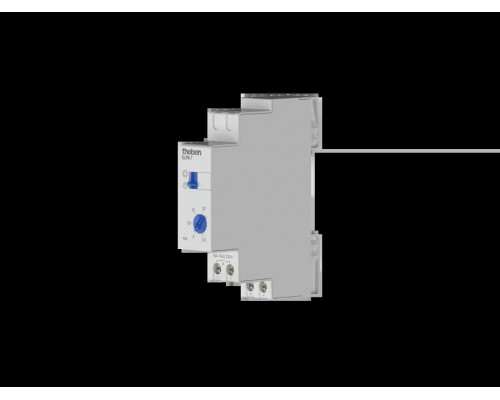

ELPA 7
Модель:
4934Артикул:
0070002Наличие:
Есть в наличии
0.00 LEI
1300 W 130 µF
LED lamp 55 W2600 VA
Fluorescent lamp load (conventional) parallel-correctedFunction description
- Staircase time switch, electronical
- Switch-off pre-warning to avoid sudden darkness
- Zero-cross switching for relay-saving switching and high lamp loads
- Immediate secondary switching
- Toggle switch for permanent light
- Terminal layout same as ELPA 8
- Extremely accurate
- Push button input with electronic overload protection
- Automatic 3 or 4 conductor detection (4 conductor with connection for floor lighting, 3 conductor no longer permitted for new systems)
1300 W 130 µF
LED lamp 55 W2600 VA
Fluorescent lamp load (conventional) parallel-corrected2600 W
Fluorescent lamp load (conventional) lead-lag circuit3/4-way conductors
AutomaticAmbient temperature
-10°C ... 50°CDuty cycle in per cent
100Fluorescent lamp load (conventional) not corrected
2600 VAFluorescent lamp load (conventional) series-corrected
2600 VAFluorescent lamp load (electronic ballast)
1100 WFrequency
50 - 60 HzGlow lamp load
100 mAHousing and insulation material
High-temperature resistant, self-extinguishing thermoplasticInrush current
max. 800 A / 200 µsInstallation type
DIN railLED lamp 2-8 W
600 WLED lamp > 8 W
600 WMulti-voltage input
Not potential-free (230 V)
Incandescent/halogen lamp loadOpening width
Switching outputOperating voltage
230 V ACProtection class
IISecondary switching
At onceSetting range time
0.5 - 20 minStand-by consumption
~0.3 WSwitch for permanent light
Switch-off pre-warning
Switching capacity
10 AX at 230 V AC, cos φ = 0.3, 16 A at 230 V AC, cos φ = 1Type of connection
3-/4-conductorsType of contact
NO contactType of protection
IP 20Width
1 modulesZero-cross switching
