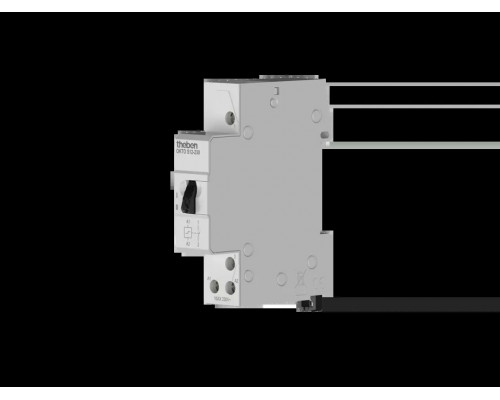

OKTO S12-230
Модель:
4975Артикул:
3120120Наличие:
Есть в наличии
0.00 LEI
Ambient temperature
-25°C ... 60°CFrequency
50 HzFunction description
- Electro-mechanical latching relay with 1 channel/contact (normally open contact)
- Comfortable lighting control of one common consumer with several push-buttons possible
- Simple and inexpensive electrical installation with 2 wires per push-button
- Operation via integrated manual switch possible
- Potential-free with SELV
- LED switching load up to 200 W
- No closed-circuit current consumption
Ambient temperature
-25°C ... 60°CFrequency
50 HzGlow lamp load
3 mAHousing and insulation material
High-temperature resistant, self-extinguishing thermoplasticIncandescent/halogen lamp load
1800 WInstallation type
DIN railLED lamp 2-8 W
200 WLED lamp > 8 W
200 WOperating voltage
230 V ACProtection class
IISwitching capacity
16 A at 230 V AC, cos φ = 1Type of contact
NO contactType of protection
IP 20Width
1 modulesОтзывов: 0
