TM 345 M
Модель:
4945Артикул:
3450731Наличие:
Есть в наличии
0.00 LEI
10 mA - 20 A
Sett
0.1 s - 100 h 7 ranges8 A
Switching outputFunction description
- Electronic time relay
- Locking snap switch to select the period of time, as well as the following operating modes:
- Response delay (AV), without control contact
- Wipe contact (EW), without control contact

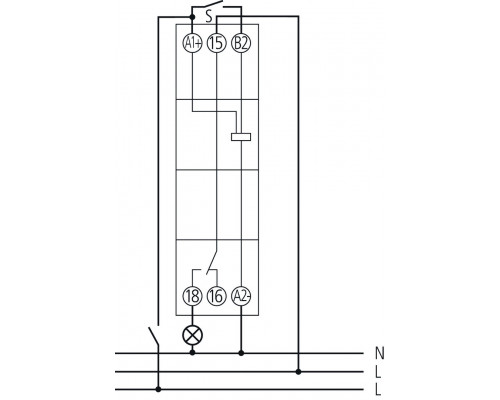

- Release delay (RV), with control contact
- Pulse former (IF), with control contact
- Response and release delay (VZ), with control contact
- Pulse output (WR), with control contact
- Flip-flop (TG)
- Can be used universally for controlling automatic processes in machines, lighting, ventilation, heating, cupboards etc.
10 mA - 20 A
Sett
0.1 s - 100 h 7 ranges8 A
Switching outputAmbient temperature
-20°C ... 60°CElectrical service life
105 operating cyclesFall back value of nominal input voltage
10.2Frequency
50 - 60 HzHigh-temperature resistant, self-extinguishing thermoplastic
Switching capacity at 250 V AC, cos φ = 1Opening width
Housing and insulation materialOperating voltage
12 V AC/DC - 240 V AC/DCPotential-free
Nominal currentProtection class
IIRepeat accuracy
± 0.5 % at constant parametersStand-by consumption
1 WType of contact
Changeover contactType of protection
IP 20Width
1 modulesОтзывов: 0
