Madison

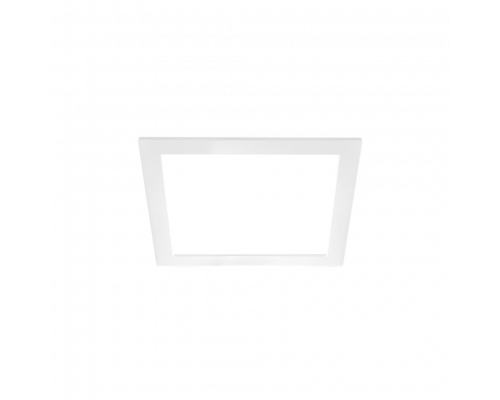

A squared recessed downlight in which the narrowness and the reduced width of its frame are the differentiating hallmarks of this elegant luminaire.
Luminous flux
1650 lm / 1675 lm / 2275 lm / 2300 lm / 3025 lm / 3075 lm
Lighting efficiency
82%
Power
10,5 W / 15,5 W / 22 W
Dimming
No Dim, DALI, Push
Color temperature
3000K / 4000K
Sealing
IP43
Chromatic stability
MacAdam Step 2
Recess measurements
205 x 205mm
Light beam angle
100°
A1900111W
Matt white
LED
1650 lm
10,5 W
3000K
CRI>90
100°
82%
No Dim
IP43
A1900112W
Matt white
LED
1675 lm
10,5 W
4000K
CRI>90
100°
82%
No Dim
IP43
A1900121W
Matt white
LED
1650 lm
10,5 W
3000K
CRI>90
100°
82%
Push
IP43
A1900122W
Matt white
LED
1675 lm
10,5 W
4000K
CRI>90
100°
82%
Push
IP43
A1900141W
Matt white
LED
1650 lm
10,5 W
3000K
CRI>90
100°
82%
DALI
IP43
A1900142W
Matt white
LED
1675 lm
10,5 W
4000K
CRI>90
100°
82%
DALI
IP43
A1900211W
Matt white
LED
2275 lm
15,5 W
3000K
CRI>90
100°
82%
No Dim
IP43
A1900212W
Matt white
LED
2300 lm
15,5 W
4000K
CRI>90
100°
82%
No Dim
IP43
A1900221W
Matt white
LED
2275 lm
15,5 W
3000K
CRI>90
100°
82%
Push
IP43
A1900222W
Matt white
LED
2300 lm
15,5 W
4000K
CRI>90
100°
82%
Push
IP43
A1900241W
Matt white
LED
2275 lm
15,5 W
3000K
CRI>90
100°
82%
DALI
IP43
A1900242W
Matt white
LED
2300 lm
15,5 W
4000K
CRI>90
100°
82%
DALI
IP43
