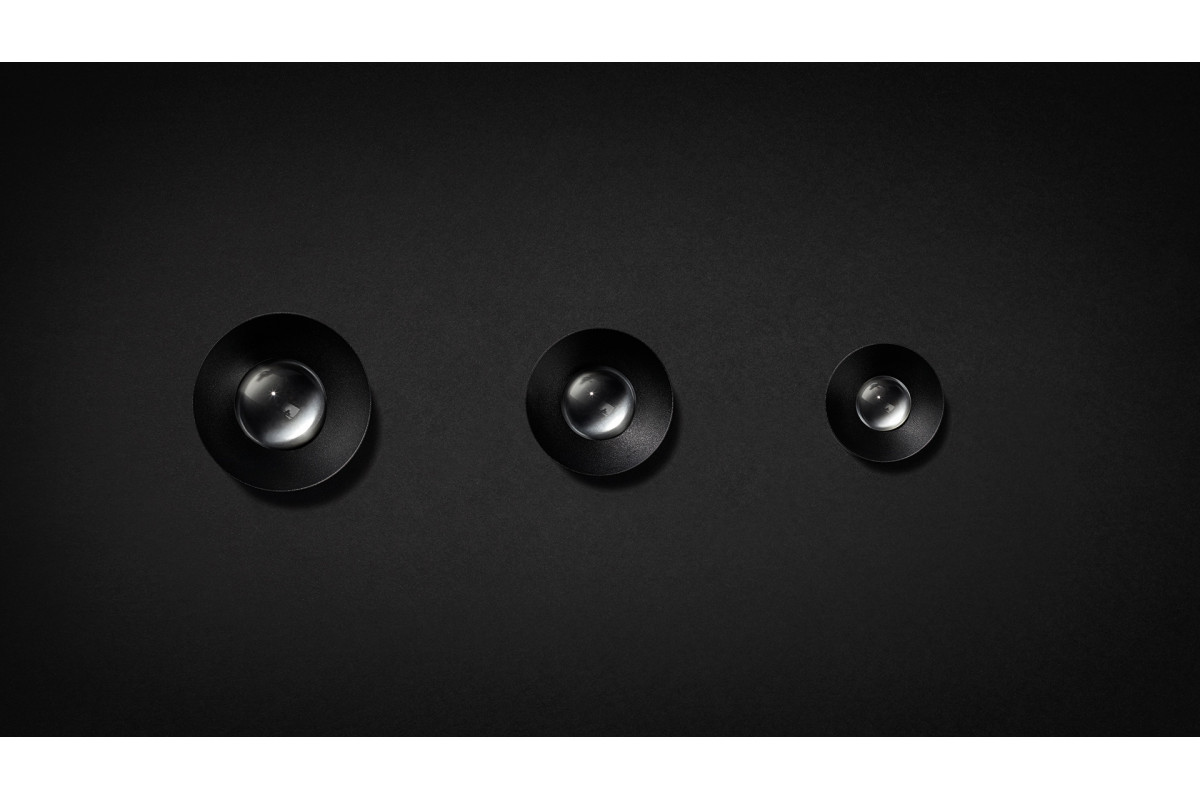

Puck M Recessed
Puck recessed is the Puck version for recessed applications. Puck recessed aims to fulfill the functions of general lighting. Its discreet presence takes the shape of a circular piece, totally made of aluminium, with a slight rounded slant to hold the light source back a few centimetres.
Awards
Iconic Award Interior Innovation 2017 Winner
Luminous flux
1090 lm / 1160 lm / 1230 lm
Lighting efficiency
80%
Power
9 W
Dimming
No Dim, DALI / Push, Phase Cut
Color temperature
2700K / 3000K / 4000K
Sealing
IP20 / IP54
Chromatic stability
MacAdam Step 2
Recess measurements
Ø73mm
Light beam angle
45°
A3131010NT

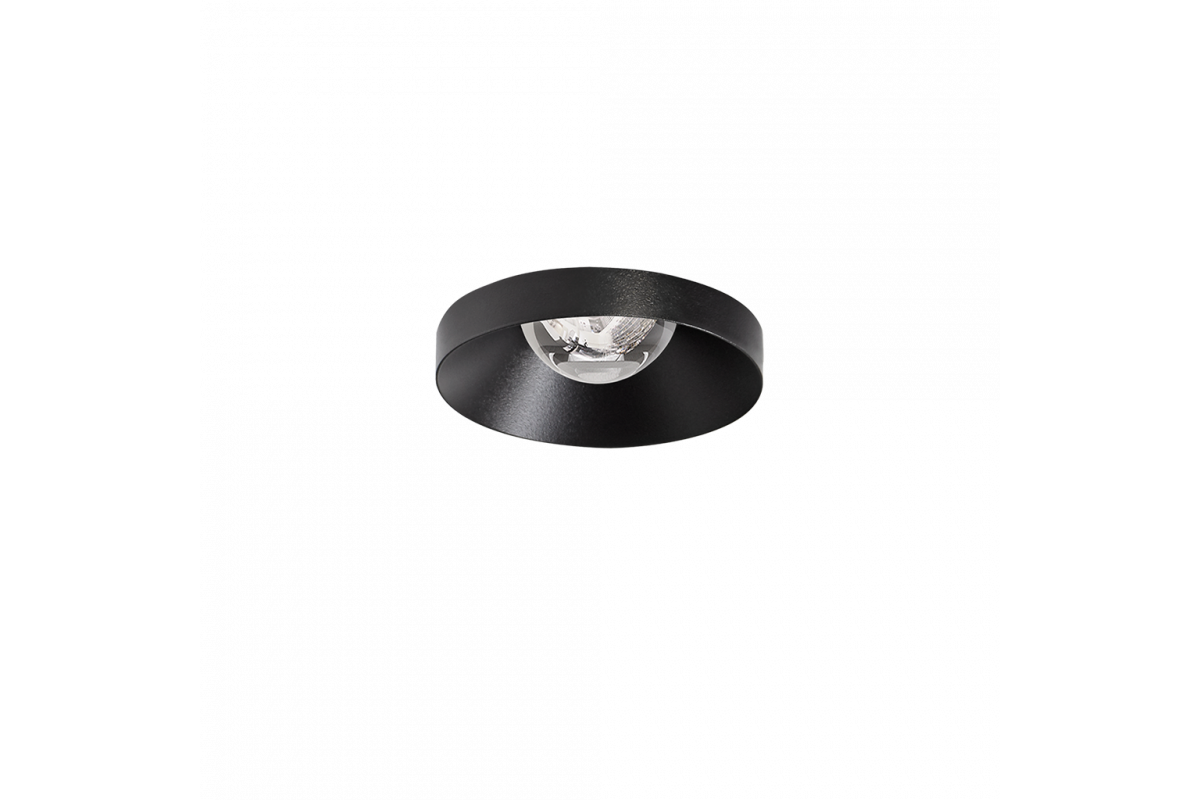

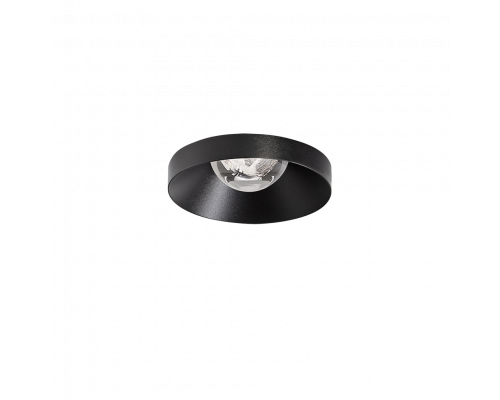

Textured black
LED
1090 lm
9 W
2700K
CRI>90
45°
80%
No Dim
IP20
A3131010WT

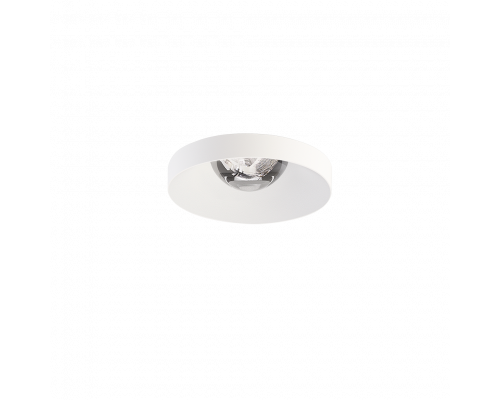

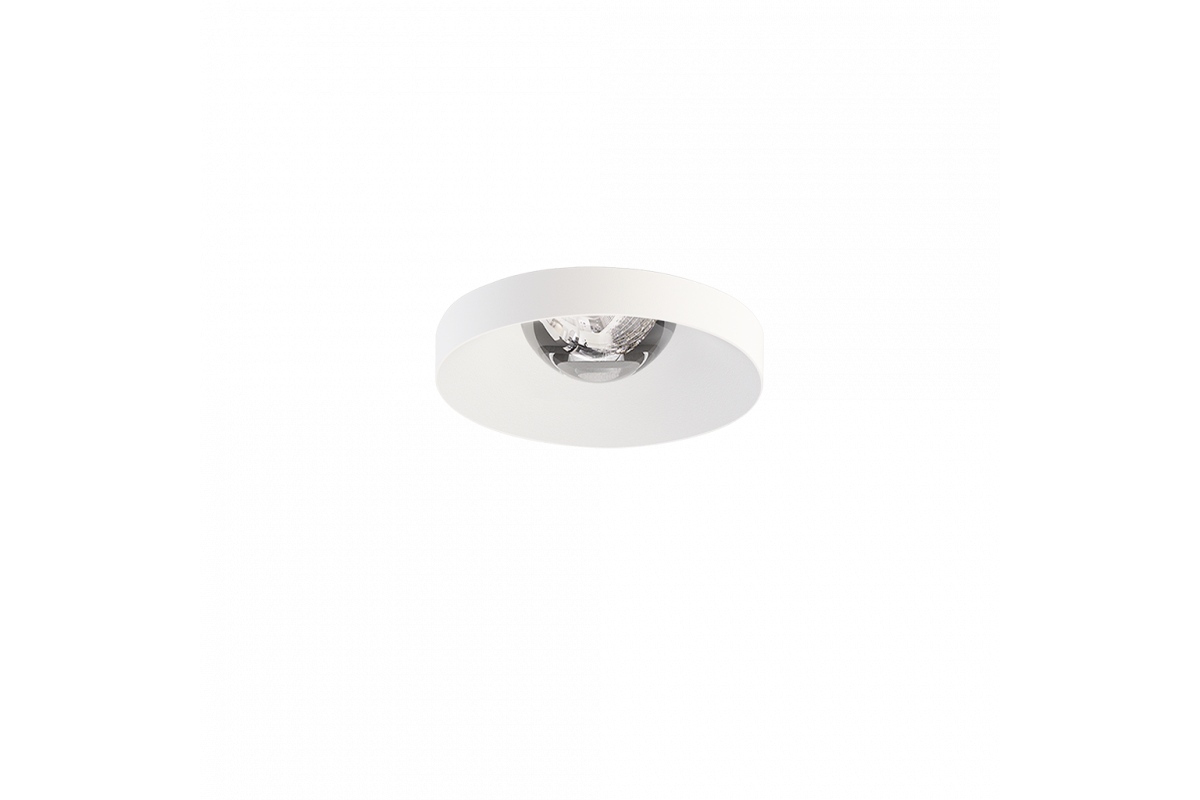

Textured white
LED
1090 lm
9 W
2700K
CRI>90
45°
80%
No Dim
IP20
A3131011NT
Textured black
LED
1160 lm
9 W
3000K
CRI>90
45°
80%
No Dim
IP20
A3131011WT
Textured white
LED
1160 lm
9 W
3000K
CRI>90
45°
80%
No Dim
IP20
A3131012NT
Textured black
LED
1230 lm
9 W
4000K
CRI>90
45°
80%
No Dim
IP20
A3131012WT
Textured white
LED
1230 lm
9 W
4000K
CRI>90
45°
80%
No Dim
IP20
A3131020NT
Textured black
LED
1090 lm
9 W
2700K
CRI>90
45°
80%
DALI / Push
IP20
A3131020WT
Textured white
LED
1090 lm
9 W
2700K
CRI>90
45°
80%
DALI / Push
IP20
A3131021NT
Textured black
LED
1160 lm
9 W
3000K
CRI>90
45°
80%
DALI / Push
IP20
A3131021WT
Textured white
LED
1160 lm
9 W
3000K
CRI>90
45°
80%
DALI / Push
IP20
A3131022NT
Textured black
LED
1230 lm
9 W
4000K
CRI>90
45°
80%
DALI / Push
IP20
A3131022WT
Textured white
LED
1230 lm
9 W
4000K
CRI>90
45°
80%
DALI / Push
IP20
