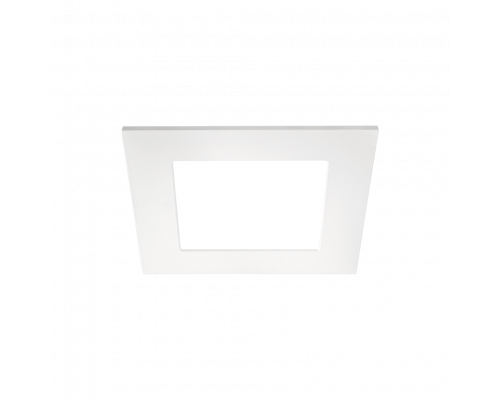

Quad

The elegance of a squared perimeter downlight combined with the easy installation of a round fitting hole.

• Luminous flux

  2275 lm / 2300 lm / 3000 lm / 3050 lm

• Lighting efficiency

  76%

• Power

  15,5 W / 22 W

• Dimming

  No Dim, DALI, Push

• Color temperature

  3000K / 4000K

• Sealing

  IP43

• Chromatic stability

  MacAdam Step 2

• Recess measurements

  Ø205mm

• Light beam angle

  102°

• QUAD 2 3000K W

  A1890211W

  Matt white

  LED

  2275 lm

  15,5 W

  3000K

  CRI>90

  102°

  76%

  No Dim

  IP43
• QUAD 2 4000K W

  A1890212W

  Matt white

  LED

  2300 lm

  15,5 W

  4000K

  CRI>90

  102°

  76%

  No Dim

  IP43
• QUAD 2 DIM PUSH 3000K W

  A1890221W

  Matt white

  LED

  2275 lm

  15,5 W

  3000K

  CRI>90

  102°

  76%

  Push

  IP43
• QUAD 2 DIM PUSH 4000K W

  A1890222W

  Matt white

  LED

  2300 lm

  15,5 W

  4000K

  CRI>90

  102°

  76%

  Push

  IP43
• QUAD 2 DIM DALI 3000K W

  A1890241W

  Matt white

  LED

  2275 lm

  15,5 W

  3000K

  CRI>90

  102°

  76%

  DALI

  IP43
• QUAD 2 DIM DALI 4000K W

  A1890242W

  Matt white

  LED

  2300 lm

  15,5 W

  4000K

  CRI>90

  102°

  76%

  DALI

  IP43
• QUAD 3 3000K W

  A1890311W

  Matt white

  LED

  3000 lm

  22 W

  3000K

  CRI>90

  102°

  76%

  No Dim

  IP43
• QUAD 3 4000K W

  A1890312W

  Matt white

  LED

  3050 lm

  22 W

  4000K

  CRI>90

  102°

  76%

  No Dim

  IP43
• QUAD 3 DIM PUSH 3000K W

  A1890321W

  Matt white

  LED

  3000 lm

  22 W

  3000K

  CRI>90

  102°

  76%

  Push

  IP43
• QUAD 3 DIM PUSH 4000K W

  A1890322W

  Matt white

  LED

  3050 lm

  22 W

  4000K

  CRI>90

  102°

  76%

  Push

  IP43
• QUAD 3 DIM DALI 3000K W

  A1890341W

  Matt white

  LED

  3000 lm

  22 W

  3000K

  CRI>90

  102°

  76%

  DALI

  IP43
• QUAD 3 DIM DALI 4000K W

  A1890342W

  Matt white

  LED

  3050 lm

  22 W

  4000K

  CRI>90

  102°

  76%

  DALI

  IP43
