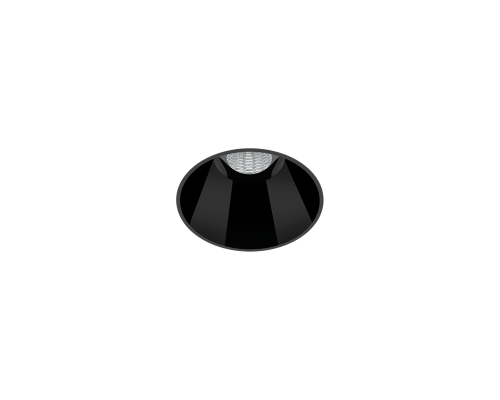

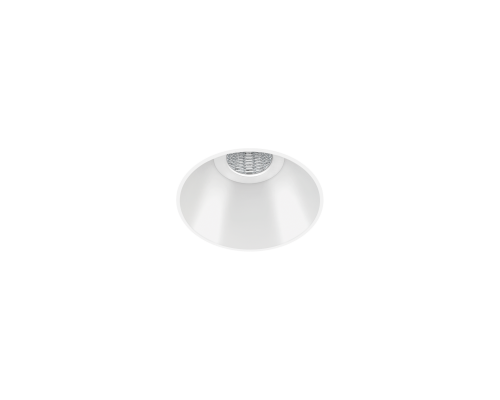

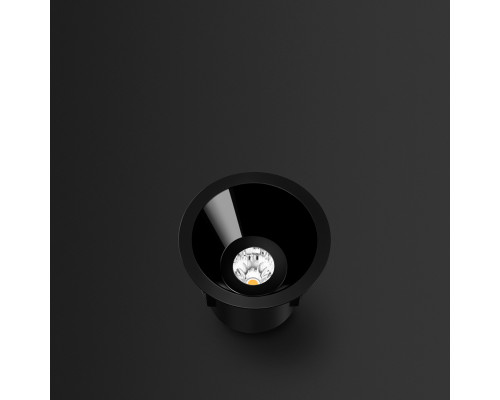

Shot Light S Trimless

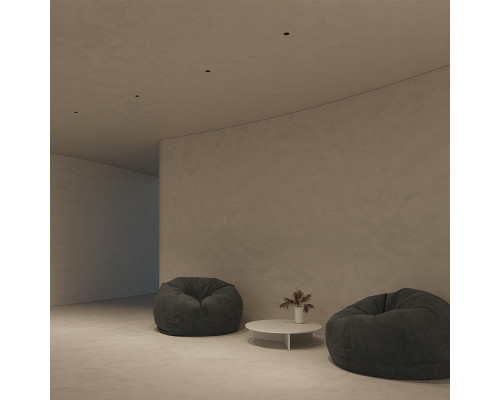

A luminary conceived to be a small, discreet point of light in the ceiling that hides the illumination source from sight and aims to offer maximum visual comfort. In order to achieve this, it has an anti-glare screen and a specifically designed micro-reflector that generates a perfectly defined light beam.
Awards
Iconic Award Interior Innovation 2017 Winner
If Product Design Award 2017 Winner
Delta Award Selection 2018
European Product Design Winner 2022
Luminous flux
580 lm / 610 lm / 650 lm
Lighting efficiency
78% / 86% / 87%
Power
6 W
Dimming
No Dim, DALI, Phase Cut, Push
Color temperature
2700K / 3000K / 4000K
Sealing
IP20 / IP54
Chromatic stability
MacAdam Step 2
Recess measurements
Ø59mm
Light beam angle
23° / 34° / 39°
A4630100N
Black
LED
580 lm
6 W
2700K
CRI>90
23°
86%
No Dim
IP20
A4630100NMG
Black-Metallized gold
LED
580 lm
6 W
2700K
CRI>90
23°
86%
No Dim
IP20
A4630101N
Black
LED
610 lm
6 W
3000K
CRI>90
23°
86%
No Dim
IP20
A4630101NMG
Black-Metallized gold
LED
610 lm
6 W
3000K
CRI>90
23°
86%
No Dim
IP20
A4630102N
Black
LED
650 lm
6 W
4000K
CRI>90
23°
86%
No Dim
IP20
A4630102NMG
Black-Metallized gold
LED
650 lm
6 W
4000K
CRI>90
23°
86%
No Dim
IP20
A4630110N
Black
LED
580 lm
6 W
2700K
CRI>90
39°
87%
No Dim
IP20
A4630110NMG
Black-Metallized gold
LED
580 lm
6 W
2700K
CRI>90
39°
87%
No Dim
IP20
A4630110W
White
LED
580 lm
6 W
2700K
CRI>90
39°
78%
No Dim
IP20
A4630111N
Black
LED
610 lm
6 W
3000K
CRI>90
39°
87%
No Dim
IP20
A4630111NMG
Black-Metallized gold
LED
610 lm
6 W
3000K
CRI>90
39°
87%
No Dim
IP20
A4630111W
White
LED
610 lm
6 W
3000K
CRI>90
39°
78%
No Dim
IP20
