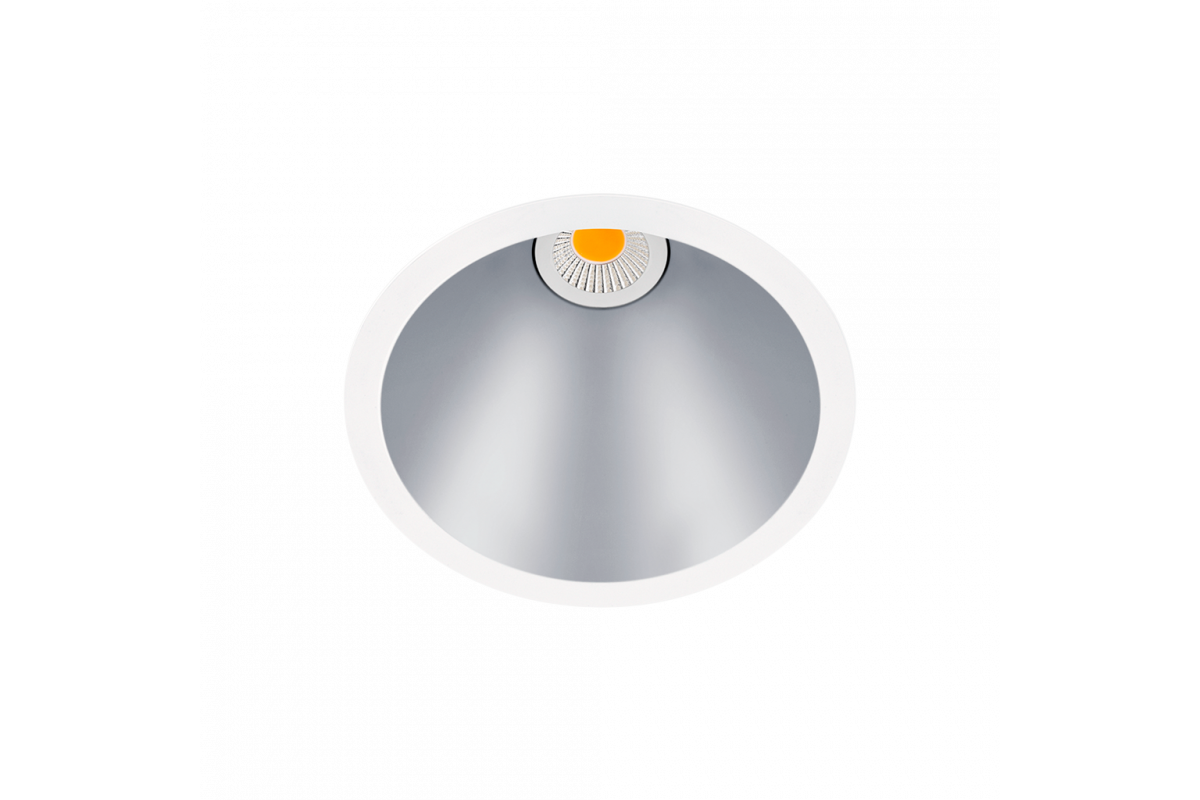

Swap M
Swap is a family of recessed LED spots that comes in 4 sizes (S, M, L, XL), two formats (round and square) and two light beam directions (symmetrical or asymmetrical). These features are embodied in 8 models and, through them, the Swap range offers a very extensive variety of colour options, luminous flux, colour temperatures, chromatic reproduction, sealing and dimming protocols. Minimalist design and easy fitting make it an unbeatable offer.
Awards
Red Dot Design Award 2015
German Design Award Nominee 2016
Luminous flux
640 lm / 675 lm / 700 lm / 710 lm / 770 lm / 800 lm / 820 lm / 910 lm / 940 lm / 960 lm
Lighting efficiency
58% / 64% / 71% / 72% / 76% / 77% / 78% / 80% / 81% / 86%
Power
5 W / 6 W / 7 W
Dimming
No Dim, DALI / Push, Phase Cut
Color temperature
2700K / 3000K / 4000K / Dim to warm 3000 - 1800K
Sealing
IP20 / IP65
Chromatic stability
MacAdam Step 2 / MacAdam Step 3
Recess measurements
Ø75mm
Light beam angle
42° / 46°
A2122110G

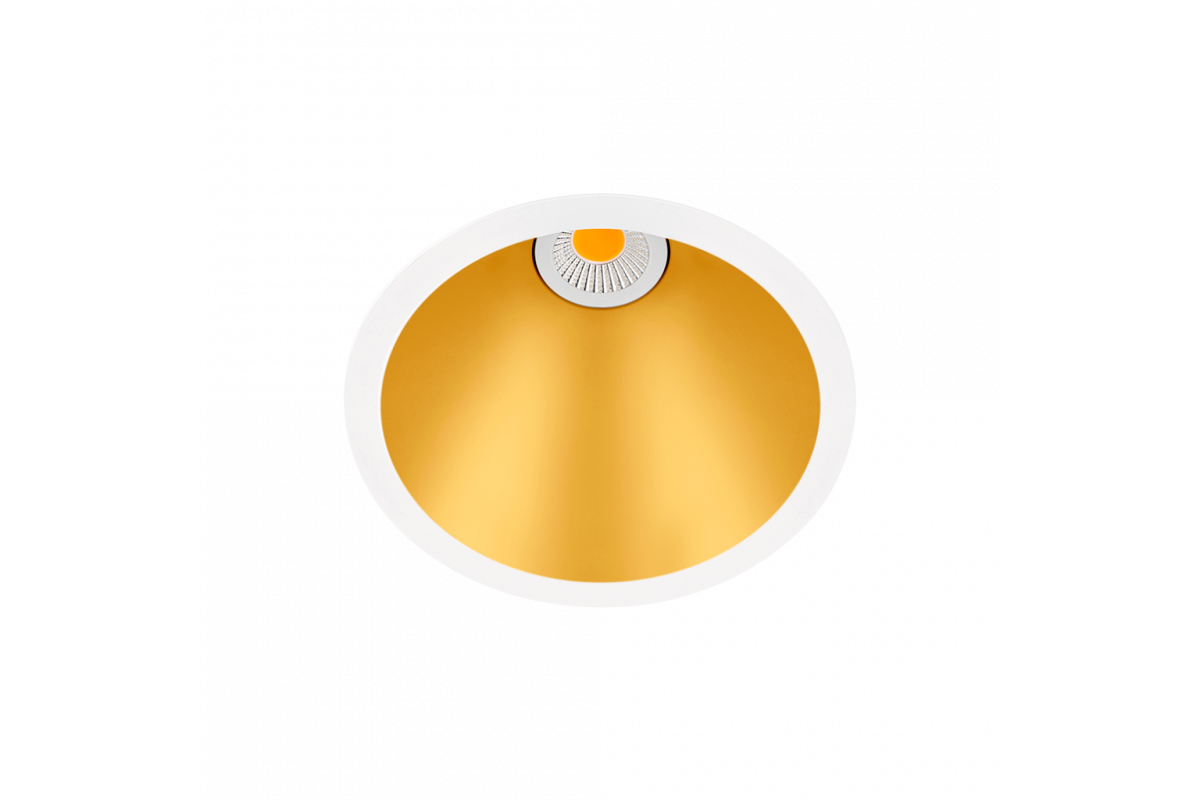

Gold
LED
675 lm
5 W
2700K
CRI>90
42°
77%
No Dim
IP20
A2122110N

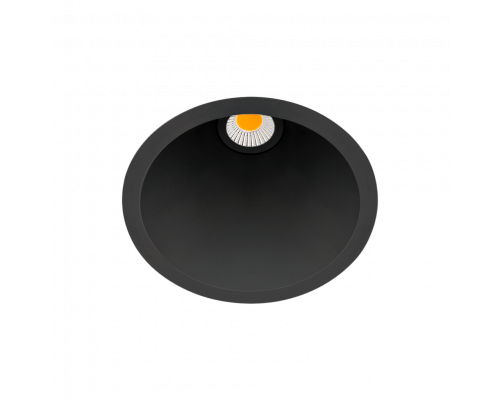

Matt black
LED
675 lm
5 W
2700K
CRI>90
42°
64%
No Dim
IP20

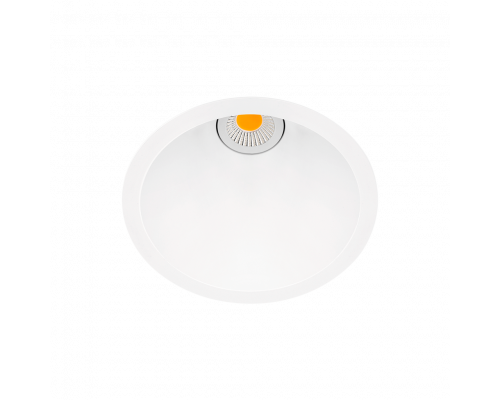

A2122110W

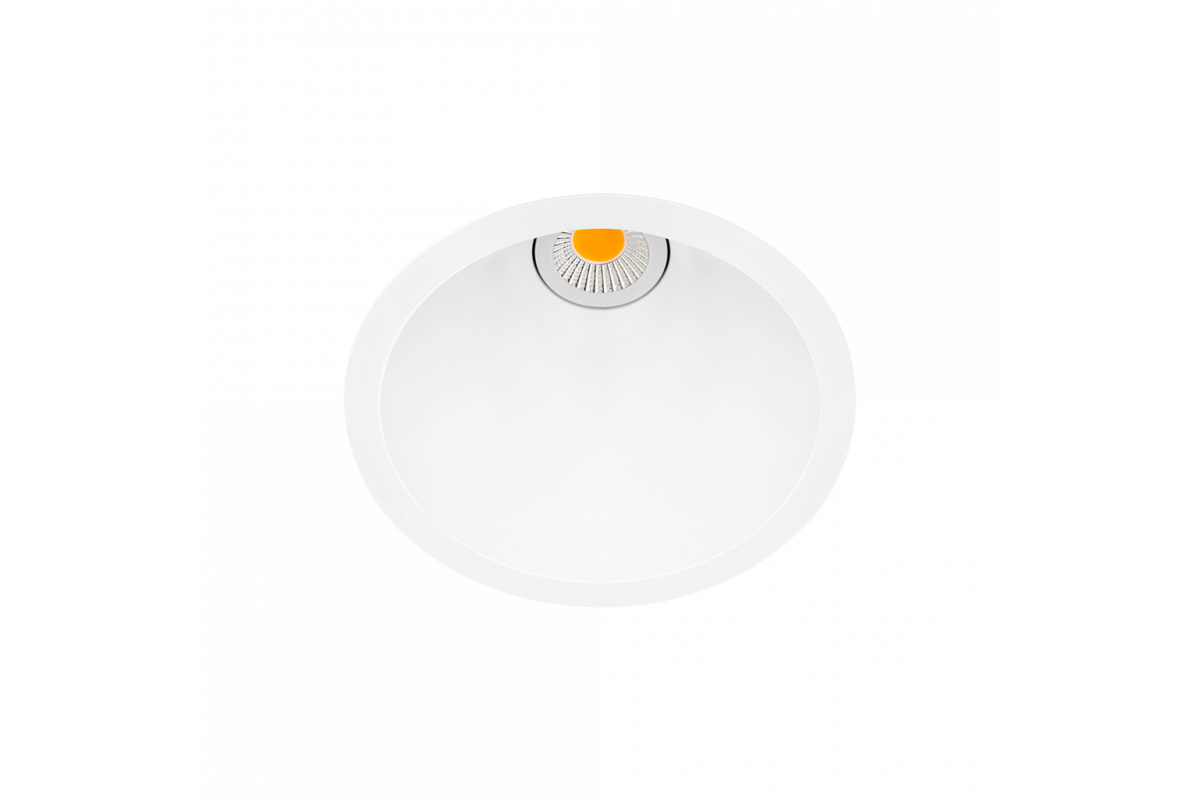

Matt white
LED
675 lm
5 W
2700K
CRI>90
42°
86%
No Dim
IP20
A2122110W65
Matt white
LED
675 lm
5 W
2700K
CRI>90
46°
81%
No Dim
IP65

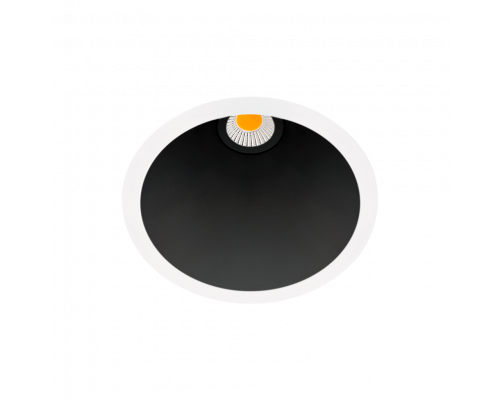

A2122110WN

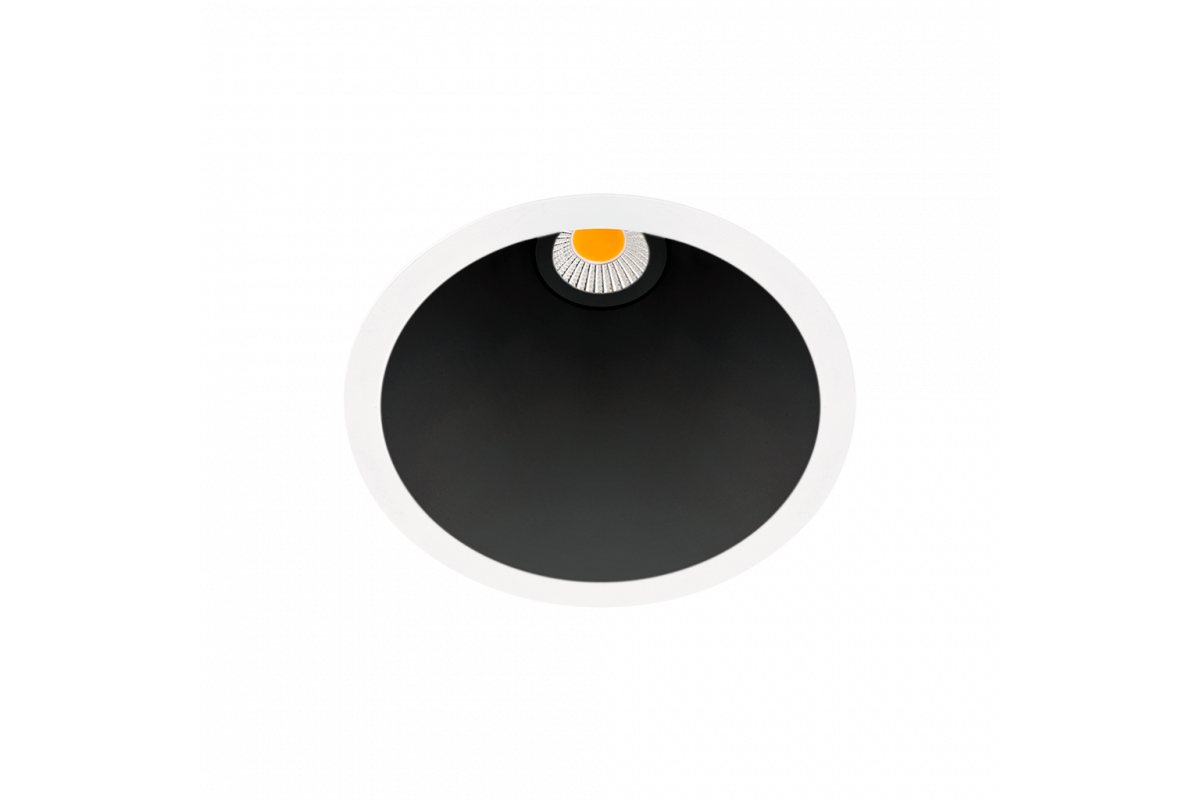

White-Black
LED
675 lm
5 W
2700K
CRI>90
42°
64%
No Dim
IP20
A2122110Z

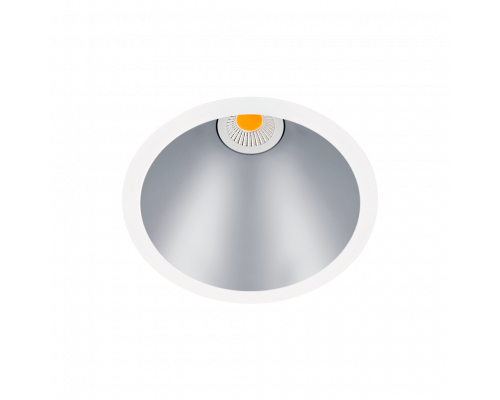

Aluminium
LED
675 lm
5 W
2700K
CRI>90
42°
78%
No Dim
IP20
A2122111G
Gold
LED
700 lm
5 W
3000K
CRI>90
42°
77%
No Dim
IP20

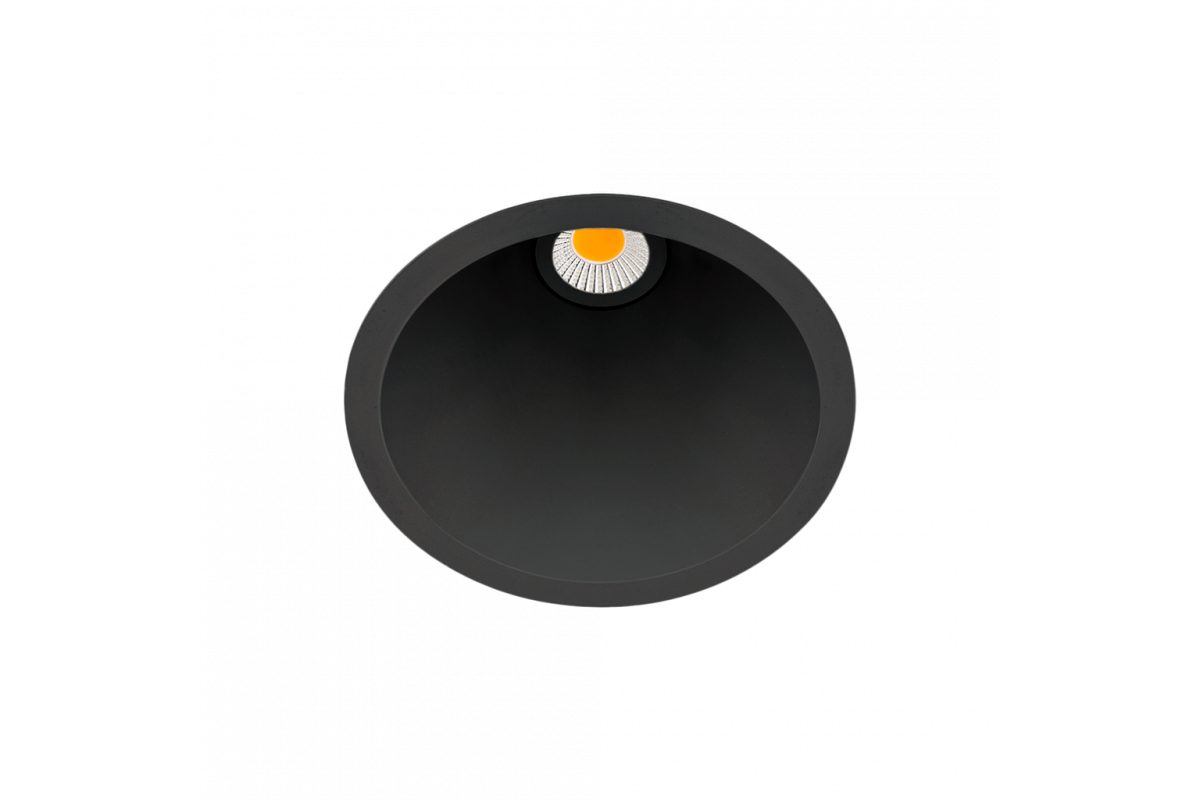

A2122111N
Matt black
LED
700 lm
5 W
3000K
CRI>90
42°
64%
No Dim
IP20
A2122111W
Matt white
LED
700 lm
5 W
3000K
CRI>90
42°
86%
No Dim
IP20
A2122111W65
Matt white
LED
700 lm
5 W
3000K
CRI>90
46°
81%
No Dim
IP65
A2122111WN
White-Black
LED
700 lm
5 W
3000K
CRI>90
42°
64%
No Dim
IP20
A2122111Z
Aluminium
LED
700 lm
5 W
3000K
CRI>90
42°
78%
No Dim
IP20
