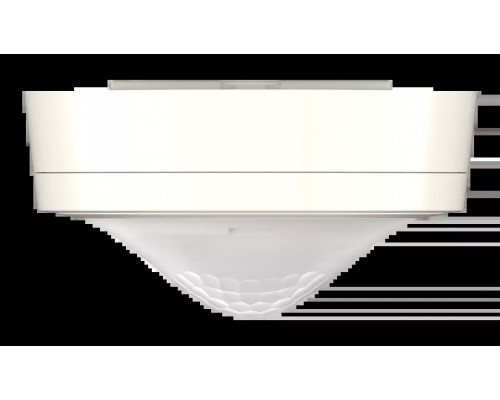

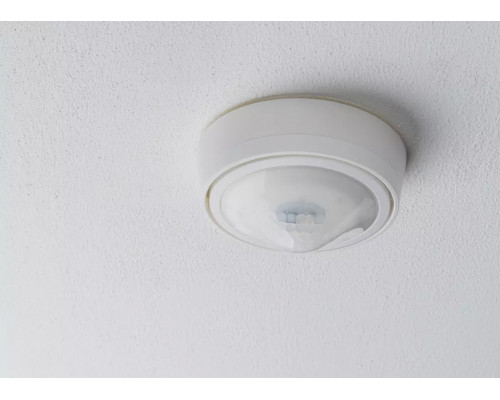

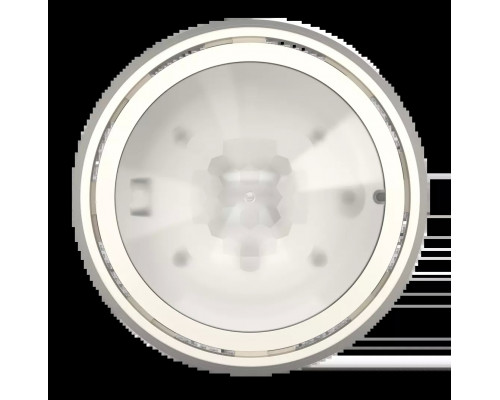

thePrema P360 KNX AP Multi WH
Модель:
5131Артикул:
2079900Наличие:
Есть в наличии
6833.00 LEI
Ambient temperature
5°C ... 40°CColour
WhiteFunction description
- Multi-sensor KNX
- Consisting of passive infra-red presence detector KNX and air quality sensor KNX (= 2 bus participants)
- Functions air quality sensor:
- Measures CO2 level, relative humidity, temperature and barometric air pressure
- Three independent, configurable thresholds for the CO2 level and relative humidity
- Integrated individual room thermostat
- 4 binary inputs
- Functions presence detector:
- Square detection area 360°, 9 x 9 m, (81 m2) at mounting height 3 m
- 3 channels light and 2 channels presence
Ambient temperature
5°C ... 40°CColour
WhiteDetection angle
360°Detection range
81 m² (9,0 x 9,0 m)Installation height
2 - 10 mInstallation type
Ceiling installationInterface extension max.
30 mLamp types
Energy saving lamps, fluorescent lamps, Incandescent/halogen lamps, LEDsLight measurement
Mixed light measurementLight switch-off delay
30 s - 60 minMeasuring range air pressure
30000 - 110000 PaMeasuring range brightness
5 - 3000 lxMeasuring range CO2
300 - 5000 ppmMeasuring range humidity
1 - 100 % rFMinimum height
1.7 mPresence switch-off delay
10 s - 120 minSetting range temperature
-5°C ... 45°CSwitch-on delay presence
10 s - 30 min / inactiveType of protection
IP 20Отзывов: 0
