PS 160 mA T KNX
Модель:
5165Артикул:
9070956Наличие:
Есть в наличии
0.00 LEI
Ambient temperature
-5°C ... 45°CFrequency
50 - 60 HzFunction description
- 160 mA supply voltage
- 30 V DC auxiliary supply
- Power-supplying and monitoring of the KNX system voltage
- Reset key for 20 sec. bus reset
- Continuous short-circuit protection
Ambient temperature
-5°C ... 45°CFrequency
50 - 60 HzInstallation type
DIN railKNX output
1 line with integrated throttle driveMains failure bridging time
min.130 msNominal current KNX
160 mANominal voltage KNX
30 V DC, ± 2 V, SELVOperating voltage
230 V AC - 240 V AC, 50 Hz - 60 HzOperating voltage KNX
Bus voltage, ≤12 mAProtection class
II according to EN 60 730-1Stand-by consumption
≤0.8 WType of connection
KNX bus terminalType of protection
IP 20Uninterrupted short-circuit current

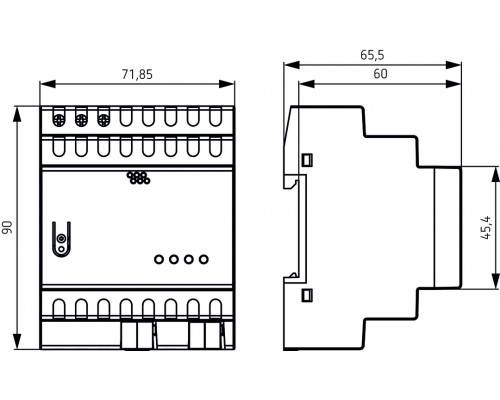

max.0.5 AWidth
4 modulesОтзывов: 0
