RM 16 S KNX
Модель:
5205Артикул:
4940225Наличие:
Есть в наличии
0.00 LEI
1200 W
Energy saving lamps1300 W (140 µF)
Fluorescent lamp load (conventional) not correctedFunction description

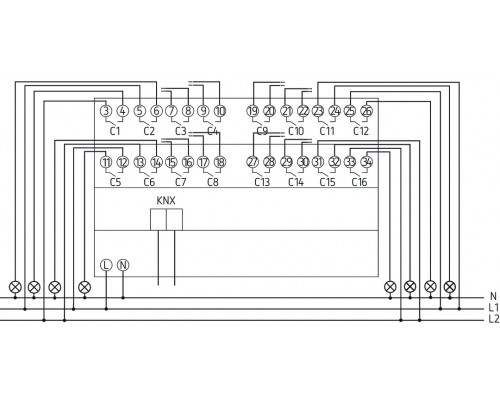

- 16-way switching actuator FIX2
- LED switching status display for each channel
- Manual operation on device (even without bus connection)
- Adjustable characteristics: e.g. switching, delayed switching, pulse function
- Links, type of contact (NC contact/NO contact) and participation in central commands such as continuous On, continuous Off, central switching and save/call up scene
- Switching functions: On/Off, pulse, On/Off delay, staircase light with warning
- Logical links: e.g. lock, AND, release, OR
1200 W
Energy saving lamps1300 W (140 µF)
Fluorescent lamp load (conventional) not corrected2000 VA
Fluorescent lamp load (electronic ballast)2000 W
Fluorescent lamp load (conventional) parallel-corrected300 W
LED lamp 55 W3680 W
Incandescent/halogen lamp loadAmbient temperature
-5°C ... 45°CC load
Frequency
50 - 60 HzInrush current
max. 800 A / 200 µsInstallation type
DIN railLED lamp 2-8 W
600 WLED lamp > 8 W
600 WMax. cable cross section
Solid wire: 0.5 mm² (Ø 0.8) to 6 mm² | Stranded wire with end sleeve: 0.5 mm² to 4 mm²Number of channels
16Opening width
Resistive loadOperating voltage
110 V AC - 240 V AC, 50 Hz - 60 HzOperating voltage KNX
Bus voltage, ≤4 mAProtection class
IIStand-by consumption
~0.5 WSuitable for SELV
Yes if all channels switch at SELVSwitching of various phases
PossibleSwitching output
Potential-freeType
Module FIX2Type of connection
KNX bus terminalType of contact
NO contact, 16 A, 3 AType of protection
IP 20Voltage output

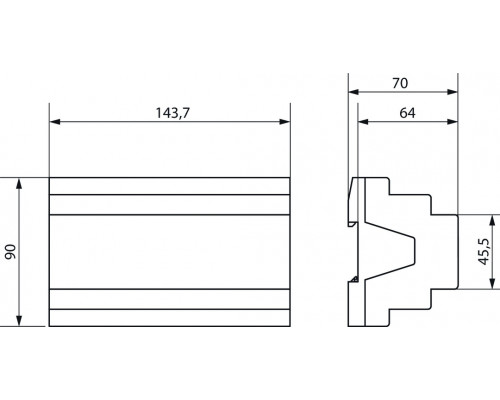

240 V ACWidth
8 modulesОтзывов: 0
