RM 8 T KNX
Модель:
5193Артикул:
4940200Наличие:
Есть в наличии
0.00 LEI
1200 W
Energy saving lamps1300 W (140 µF)
Fluorescent lamp load (conventional) not correctedFunction description

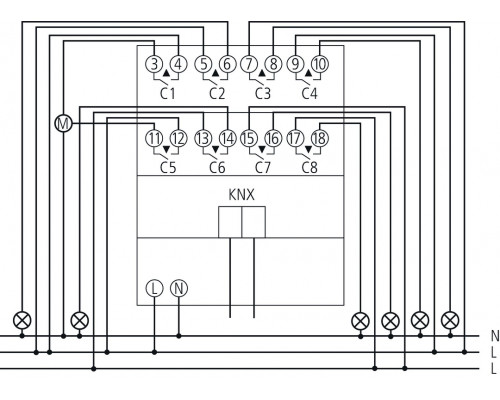

- 8-way switching or 4-way blind actuator FIX1
- Flexible channel function selection as switching actuator or for controlling drives for blinds,shutters, sun and vision protection devices, skylights and ventilation flaps
- LED switching status display for each channel
- Manual operation on device (even without bus connection)
1200 W
Energy saving lamps1300 W (140 µF)
Fluorescent lamp load (conventional) not corrected2000 VA
Fluorescent lamp load (electronic ballast)2000 W
Fluorescent lamp load (conventional) parallel-corrected300 W
LED lamp 55 WAmbient temperature
-5°C ... 45°CC load
Frequency
50 - 60 HzInrush current
max. 800 A / 200 µsInstallation type
DIN railLED lamp 2-8 W
600 WLED lamp > 8 W
600 WMax. cable cross section
Solid wire: 0.5 mm² (Ø 0.8) to 6 mm² | Stranded wire with end sleeve: 0.5 mm² to 4 mm²Opening width
Incandescent/halogen lamp loadOperating voltage
110 V AC - 240 V AC, 50 Hz - 60 HzOperating voltage KNX
Bus voltage, ≤4 mAProtection class
II according to EN 60 669Stand-by consumption
~0.5 WSuitable for SELV
Yes if all channels switch at SELVSwitching of various phases
PossibleSwitching output
Potential-freeType
Module FIX1Type of connection
Terminal screws | Bus connection: KNX bus terminalType of contact
NO contact, 16 A, 3 AType of protection
IP 20Voltage output

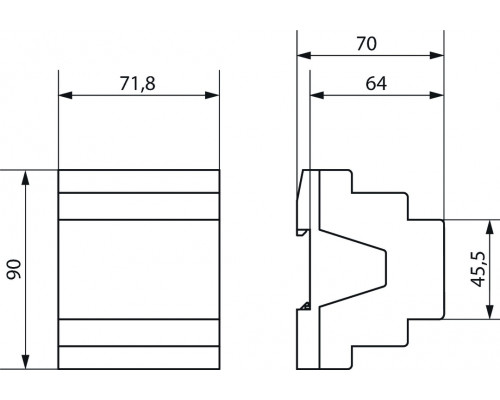

240 V ACWidth
4 modulesОтзывов: 0
