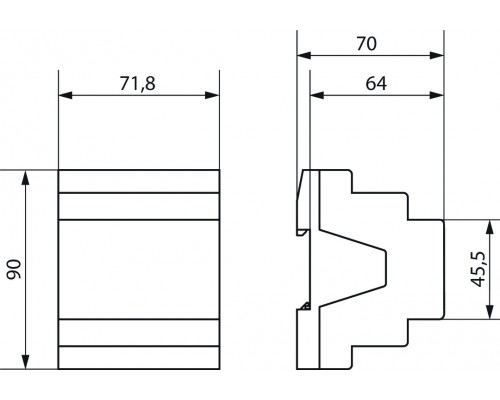

RME 4 I KNX
Модель:
5174Артикул:
4930215Наличие:
Есть в наличии
0.00 LEI
-5°C ... 45°C
Type of protection1650 W
Energy saving lampsFunction description
- 4-way C load switching actuator MIX2
- With current recognition
- For higher lamp loads
- Extension module MIX2
- For upgrading to maximum of 12 channels
- Up to two extension modules MIX or MIX2 can be connected to one base module
- Device and KNX bus module can be swapped independently of each other
- Removable KNX bus module enables devices to be changed without reprogramming
- Manual set-up and use of switching actuators is possible without KNX bus module
- LED switching status display for each channel
-5°C ... 45°C
Type of protection1650 W
Energy saving lamps200 µF
Incandescent/halogen lamp load2000 W (200 µF)
Fluorescent lamp load (electronic ballast)2600 W
Fluorescent lamp load (conventional) parallel-corrected3680 W
Capacitive load410 W
LED lamp 75 WAccuracy current measurement
I > 1 A: ± 8 % of measured value; I C loadCapacity loss max.
2.4 WExtension module
Ambient temperatureFrequency
50 - 60 HzII according to EN 60 669
Inrush current
max. 1500 A / 200 µsInstallation type
DIN railIP 20
Protection classLED lamp 2-8 W
850 WLED lamp > 8 W
850 WMax. cable cross section
Solid wire: 0.5 mm² (Ø 0.8) to 6 mm² | Stranded wire with end sleeve: 0.5 mm² to 4 mm²Number of channels
4Opening width
Resistive loadOperating voltage
110 V AC - 240 V AC, 50 Hz - 60 HzStand-by consumption
~0 WSuitable for SELV
Yes if all channels switch at SELVSwitching of various phases
PossibleSwitching output
Potential-freeType of connection
Screw terminalsType of contact
NO contact, 16 A, 10 AVoltage output
240 V ACWidth
4 modulesОтзывов: 0
