thePixa P360 24V KNX UP WH
Модель:
5259Артикул:
2269210Наличие:
Есть в наличии
0.00 LEI
Ambient temperature
-5°C ... 45°CColour
WhiteFunction description
- **Currently not available**

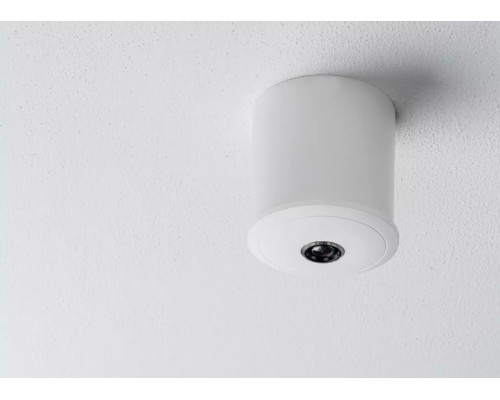

- Optical sensor for ceiling installation
- KNX Data Secure
- Rectangular detection area with up to 6 flexible detection zones (Total area 11.0 x 15.5 m │171 m2; at 4.5 m installation height)
- Restriction of the detection area via app (thePixa Plug)
- Automatic presence and brightness-dependent control for lighting and HVAC
- Each detection zone has its own light measurement
- Adjustment of brightness measurements via thePixa Plug app
- Configurable sensitivity of sensor
- Distinction between motion and presence
Ambient temperature
-5°C ... 45°CColour
WhiteInstallation height
2.5 - 4.5 mInstallation type
Flush-mountedLight measurement
Mixed light measurementLight switch-off delay
0 s - 60 minMeasuring range brightness
5 - 3000 lxMinimum height
2.5 mOperating voltage
24 V DCSetting range temperature
-15°C ... 60°CStand-by consumption
≤67 mASwitch-on delay presence

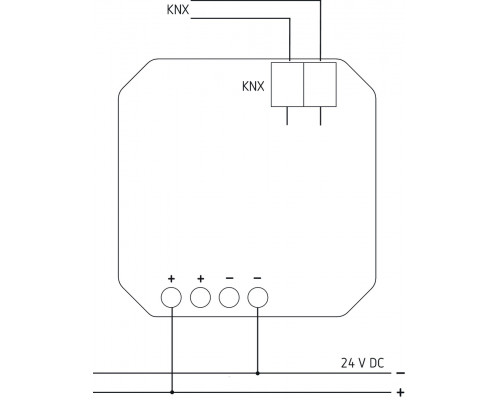

0 s - 120 min / inactiveType of connection
KNX bus terminalType of protection
IP 20Отзывов: 0
