Deep Maxi

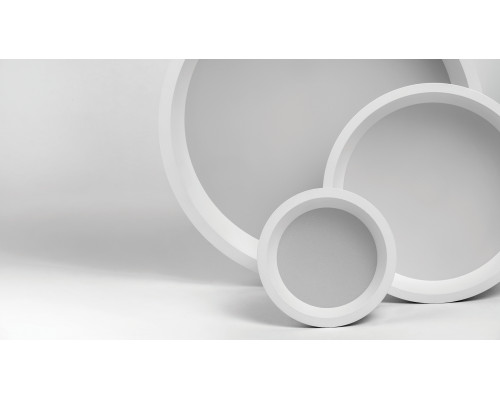

Deep is a family of LED downlights for general lighting functions that stands out for its attractive appearance, where the diffuser is distinctly recessed in relation to the level of the perimeter frame. With its different sizes, it adapts to each project’s requirements and adds a differentiating attribute.

• Luminous flux

  2450 lm / 2500 lm / 3450 lm / 3500 lm / 4700 lm / 4775 lm / 5825 lm / 5925 lm

• Lighting efficiency

  85%

• Power

  15 W / 22 W / 31 W / 40 W

• Dimming

  No Dim, DALI, Push

• Color temperature

  3000K / 4000K

• Sealing

  IP43 / IP54

• Chromatic stability

  MacAdam Step 2

• Recess measurements

  Ø320mm

• Light beam angle

  99°

• DEEP MAXI 2 3000K WT

  A2480211WT

  Textured white

  LED

  2450 lm

  15 W

  3000K

  CRI>90

  99°

  85%

  No Dim

  IP43
• DEEP MAXI 2 4000K WT

  A2480212WT

  Textured white

  LED

  2500 lm

  15 W

  4000K

  CRI>90

  99°

  85%

  No Dim

  IP43
• DEEP MAXI 2 DIM PUSH 3000K WT

  A2480221WT

  Textured white

  LED

  2450 lm

  15 W

  3000K

  CRI>90

  99°

  85%

  Push

  IP43
• DEEP MAXI 2 DIM PUSH 4000K WT

  A2480222WT

  Textured white

  LED

  2500 lm

  15 W

  4000K

  CRI>90

  99°

  85%

  Push

  IP43
• DEEP MAXI 2 DIM DALI 3000K WT

  A2480241WT

  Textured white

  LED

  2450 lm

  15 W

  3000K

  CRI>90

  99°

  85%

  DALI

  IP43
• DEEP MAXI 2 DIM DALI 4000K WT

  A2480242WT

  Textured white

  LED

  2500 lm

  15 W

  4000K

  CRI>90

  99°

  85%

  DALI

  IP43
• DEEP MAXI 3 3000K WT

  A2480311WT

  Textured white

  LED

  3450 lm

  22 W

  3000K

  CRI>90

  99°

  85%

  No Dim

  IP43
• DEEP MAXI 3 4000K WT

  A2480312WT

  Textured white

  LED

  3500 lm

  22 W

  4000K

  CRI>90

  99°

  85%

  No Dim

  IP43
• DEEP MAXI 3 DIM PUSH 3000K WT

  A2480321WT

  Textured white

  LED

  3450 lm

  22 W

  3000K

  CRI>90

  99°

  85%

  Push

  IP43
• DEEP MAXI 3 DIM PUSH 4000K WT

  A2480322WT

  Textured white

  LED

  3500 lm

  22 W

  4000K

  CRI>90

  99°

  85%

  Push

  IP43
• DEEP MAXI 3 DIM DALI 3000K WT

  A2480341WT

  Textured white

  LED

  3450 lm

  22 W

  3000K

  CRI>90

  99°

  85%

  DALI

  IP43
• DEEP MAXI 3 DIM DALI 4000K WT

  A2480342WT

  Textured white

  LED

  3500 lm

  22 W

  4000K

  CRI>90

  99°

  85%

  DALI

  IP43
