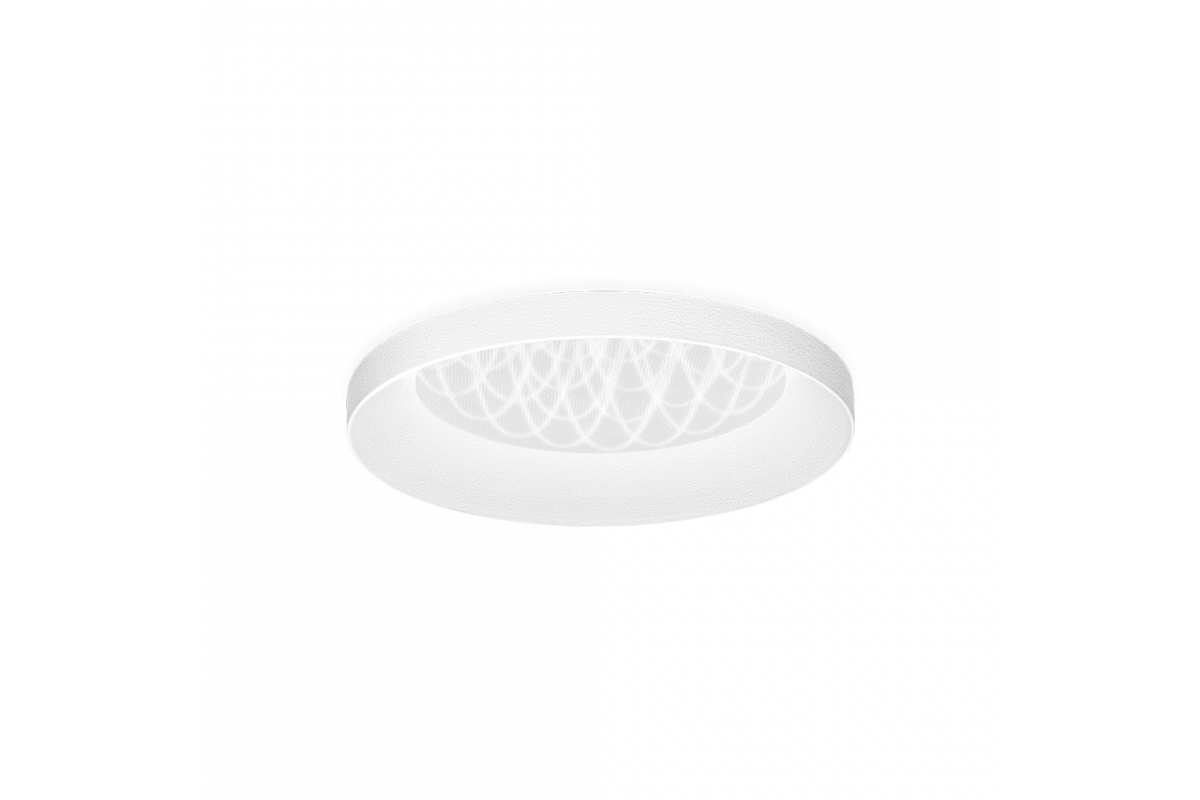

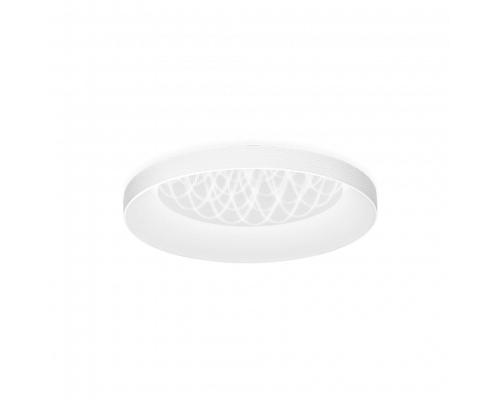

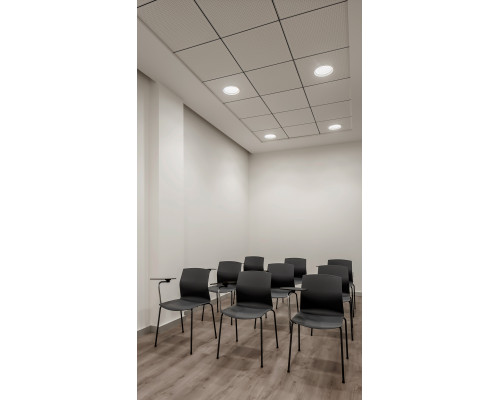

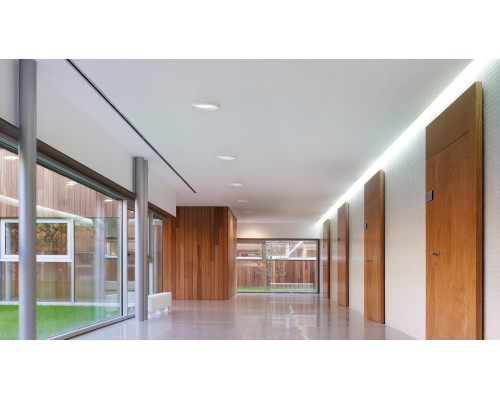

Stram Mini Prismatic
A recessed downlight with one bezel, with marked presence. In the Prismatic version you will discover the attractive and efficient effect of its diffusor’s light waves which, in addition, reduces the UGR.
Awards
Delta Awards´14 Selected
Luminous flux
975 lm / 1050 lm / 1075 lm / 1275 lm / 1375 lm / 1400 lm
Lighting efficiency
80%
Power
7 W / 10 W
Dimming
No Dim, DALI, Push
Color temperature
2700K / 3000K / 4000K
Sealing
IP43/54**
Chromatic stability
MacAdam Step 2
Recess measurements
Ø122mm
Light beam angle
87°
A2370210WT
Textured white
LED
975 lm
7 W
2700K
CRI>90
87°
80%
No Dim
IP43/54**
A2370211WT
Textured white
LED
1050 lm
7 W
3000K
CRI>90
87°
80%
No Dim
IP43/54**
A2370212WT
Textured white
LED
1075 lm
7 W
4000K
CRI>90
87°
80%
No Dim
IP43/54**
A2370220WT
Textured white
LED
975 lm
7 W
2700K
CRI>90
87°
80%
Push
IP43/54**
A2370221WT
Textured white
LED
1050 lm
7 W
3000K
CRI>90
87°
80%
Push
IP43/54**
A2370222WT
Textured white
LED
1075 lm
7 W
4000K
CRI>90
87°
80%
Push
IP43/54**
A2370240WT
Textured white
LED
975 lm
7 W
2700K
CRI>90
87°
80%
DALI
IP43/54**
A2370241WT
Textured white
LED
1050 lm
7 W
3000K
CRI>90
87°
80%
DALI
IP43/54**
A2370242WT
Textured white
LED
1075 lm
7 W
4000K
CRI>90
87°
80%
DALI
IP43/54**
A2370310WT
Textured white
LED
1275 lm
10 W
2700K
CRI>90
87°
80%
No Dim
IP43/54**
A2370311WT
Textured white
LED
1375 lm
10 W
3000K
CRI>90
87°
80%
No Dim
IP43/54**
A2370312WT
Textured white
LED
1400 lm
10 W
4000K
CRI>90
87°
80%
No Dim
IP43/54**
