Stram

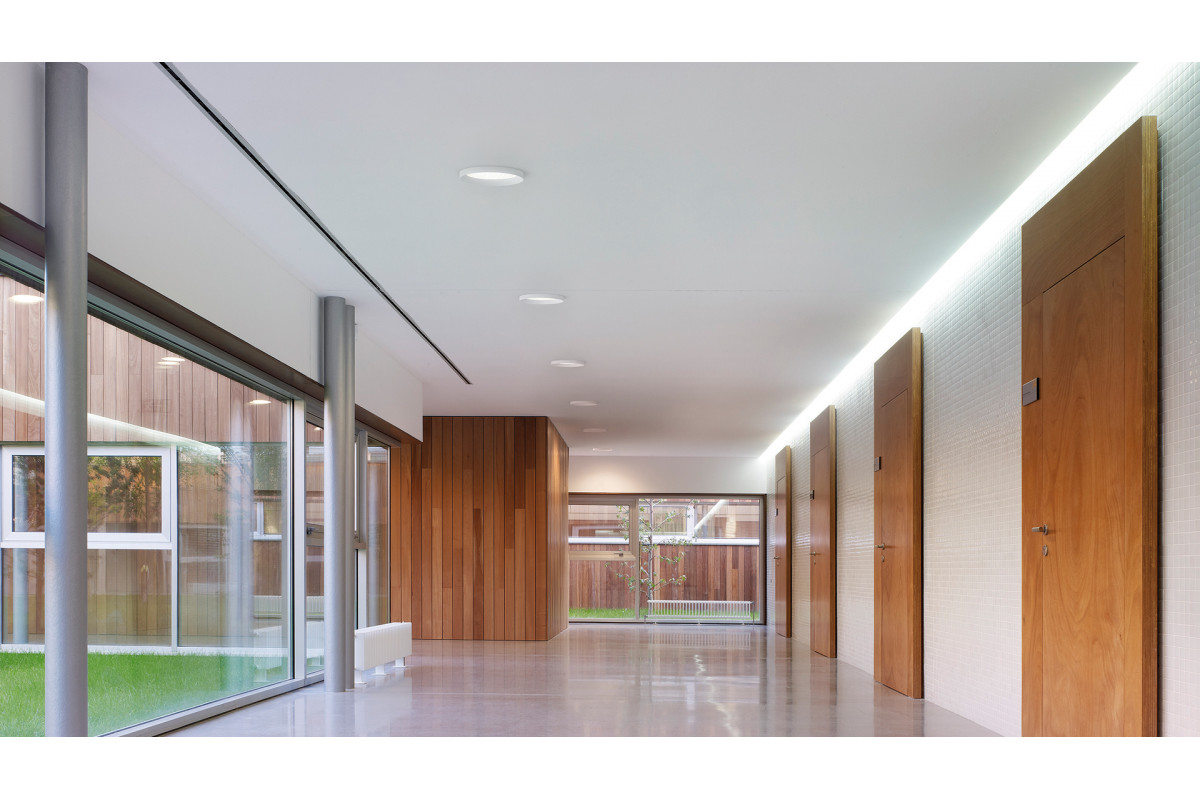

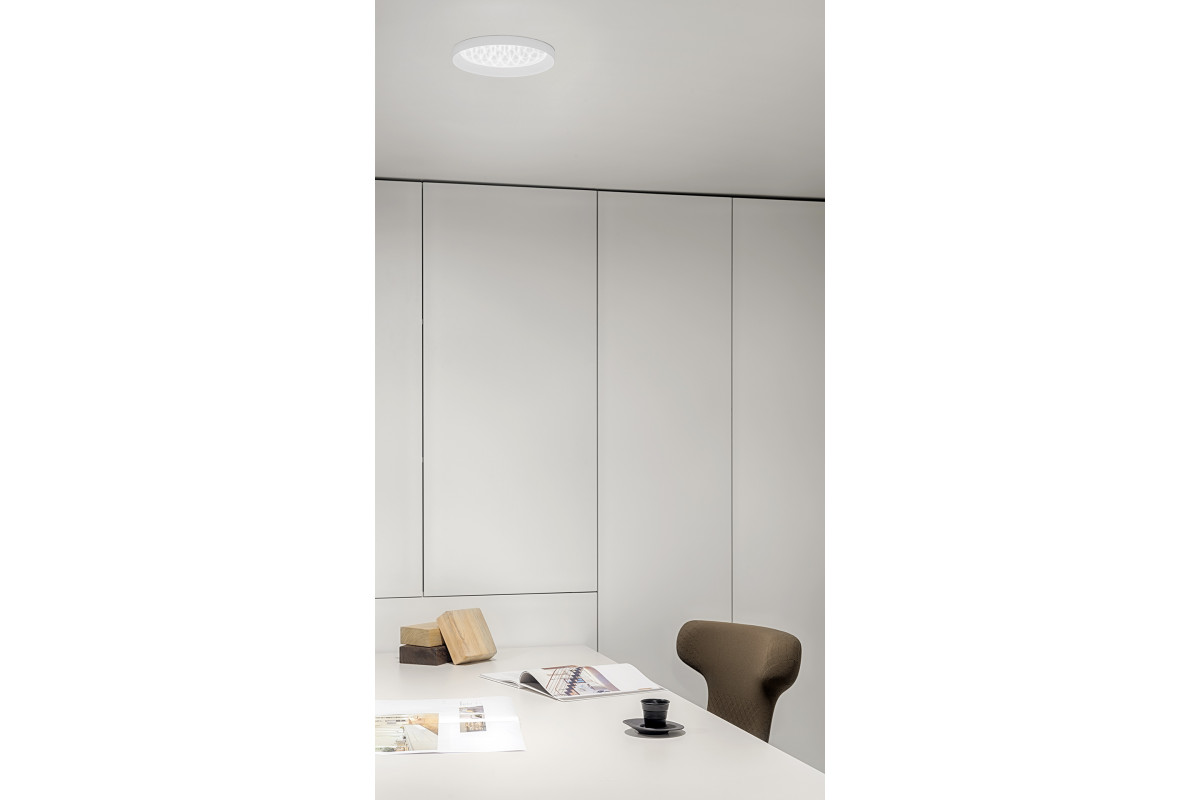

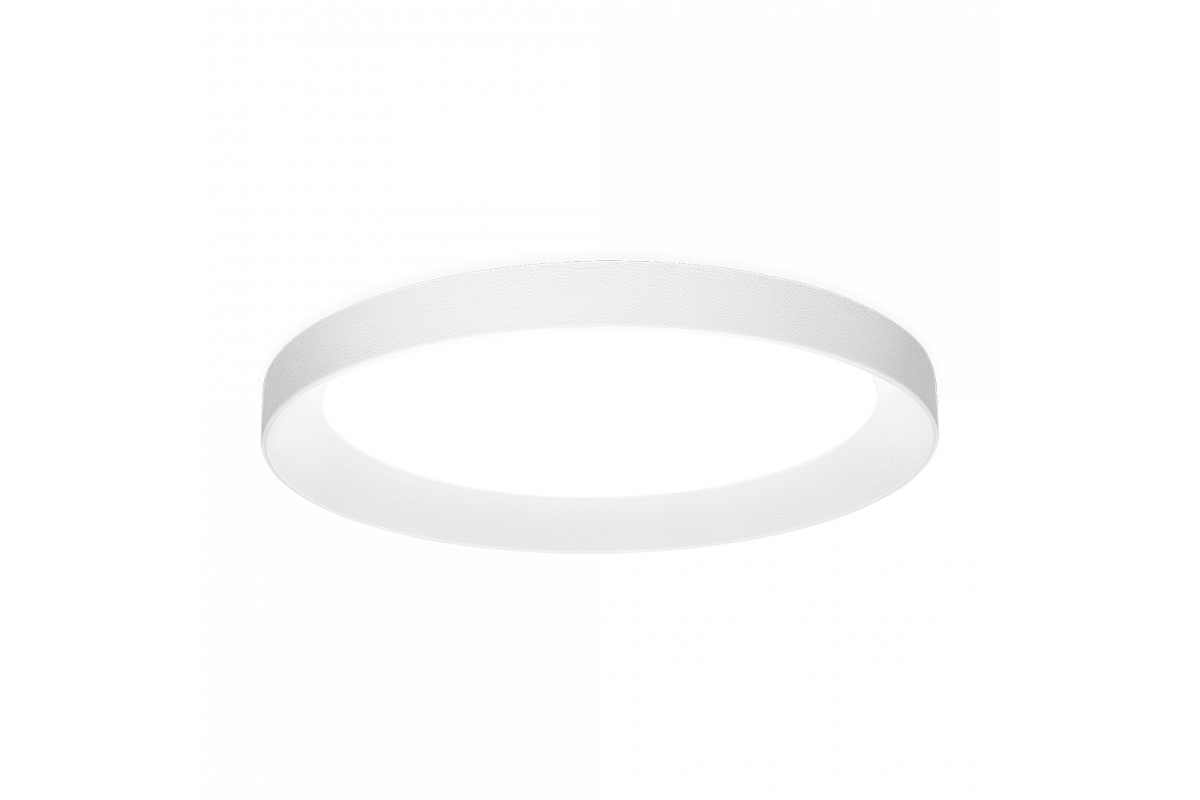

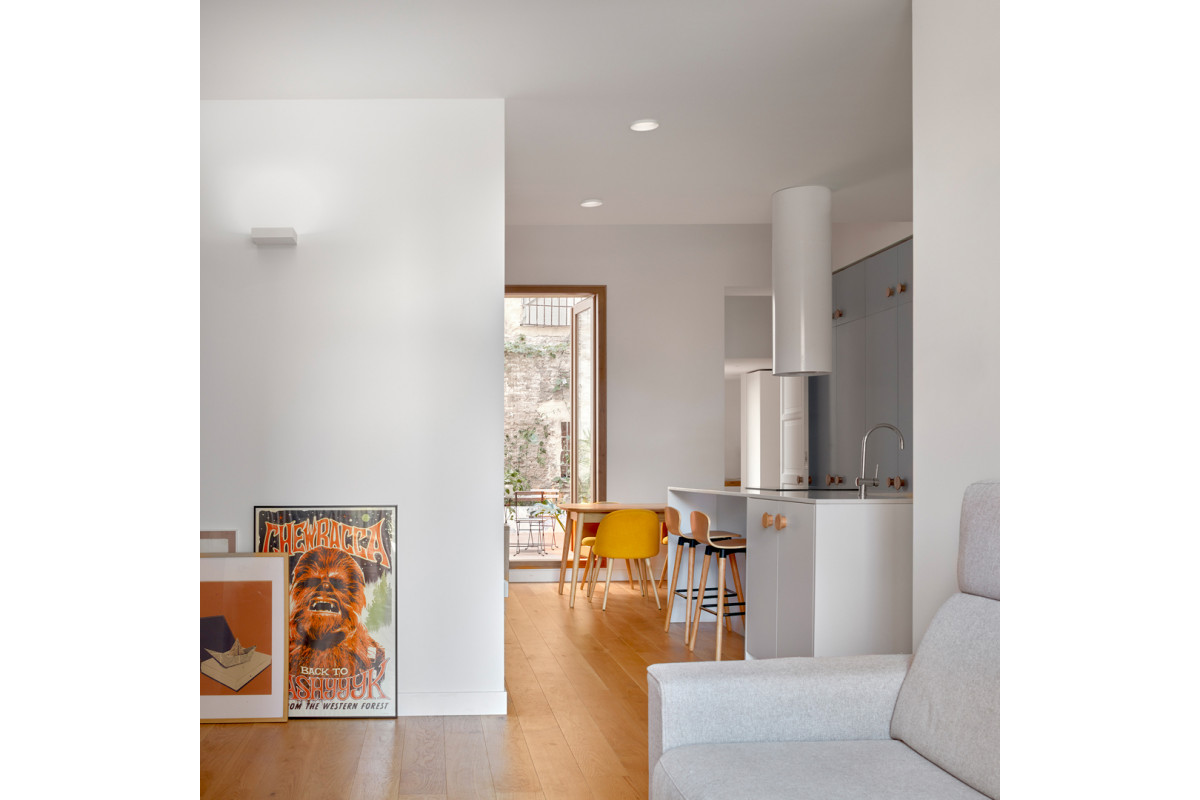

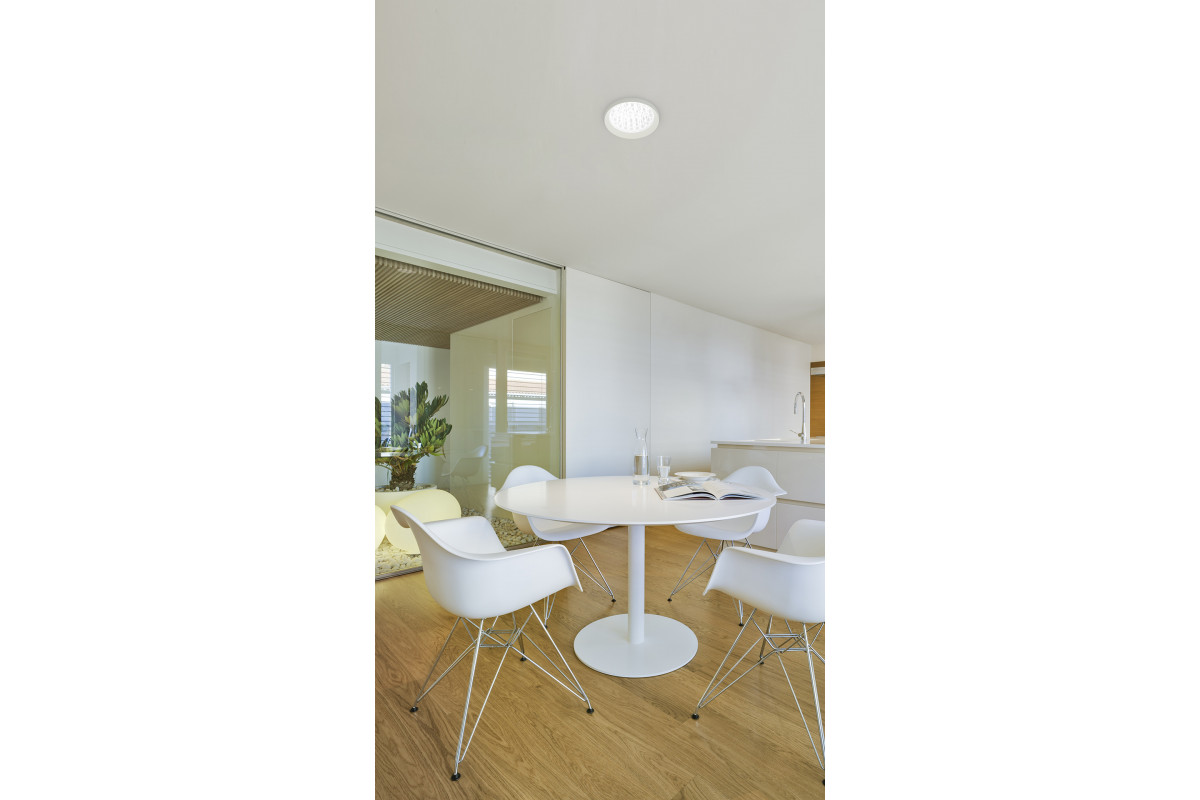

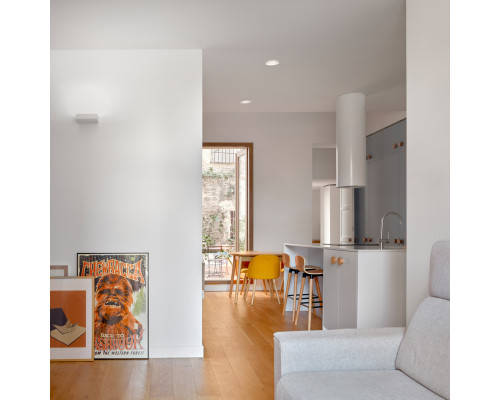

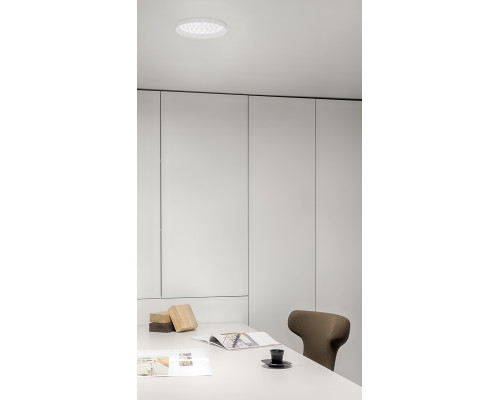

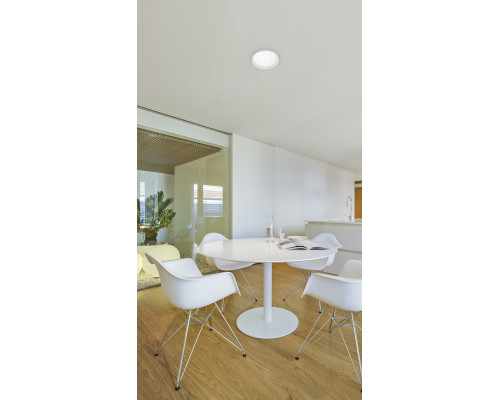

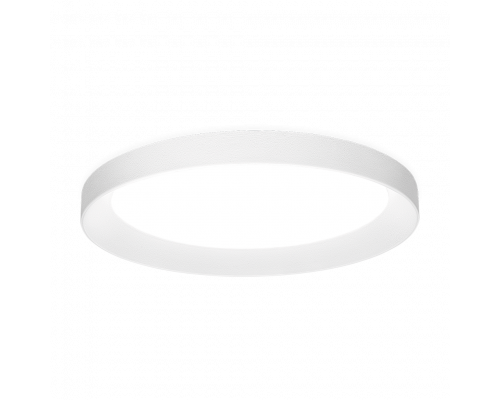

A recessed downlight with one bezel, with marked presence. In the Prismatic version you will discover the attractive and efficient effect of its diffusor’s light waves which, in addition, reduces the UGR.
Awards
Delta Awards´14 Selected
Luminous flux
1525 lm / 1650 lm / 1675 lm / 2100 lm / 2275 lm / 2300 lm / 2800 lm / 3025 lm / 3075 lm / 4050 lm / 4100 lm
Lighting efficiency
87% / 89%
Power
10,5 W / 15,5 W / 22 W / 27 W
Dimming
No Dim, DALI, Push
Color temperature
2700K / 3000K / 4000K
Sealing
IP43 / IP54
Chromatic stability
MacAdam Step 2
Recess measurements
Ø205mm
Light beam angle
99°
A1970110WT
Textured white
LED
1525 lm
10,5 W
2700K
CRI>90
99°
87%
No Dim
IP43
A1970111WT
Textured white
LED
1650 lm
10,5 W
3000K
CRI>90
99°
87%
No Dim
IP43
A1970112WT
Textured white
LED
1675 lm
10,5 W
4000K
CRI>90
99°
87%
No Dim
IP43
A1970120WT
Textured white
LED
1525 lm
10,5 W
2700K
CRI>90
99°
87%
Push
IP43
A1970121WT
Textured white
LED
1650 lm
10,5 W
3000K
CRI>90
99°
87%
Push
IP43
A1970122WT
Textured white
LED
1675 lm
10,5 W
4000K
CRI>90
99°
87%
Push
IP43
A1970140WT
Textured white
LED
1525 lm
10,5 W
2700K
CRI>90
99°
87%
DALI
IP43
A1970141WT
Textured white
LED
1650 lm
10,5 W
3000K
CRI>90
99°
87%
DALI
IP43
A1970142WT
Textured white
LED
1675 lm
10,5 W
4000K
CRI>90
99°
87%
DALI
IP43
A1970210WT
Textured white
LED
2100 lm
15,5 W
2700K
CRI>90
99°
87%
No Dim
IP43
A1970211WT
Textured white
LED
2275 lm
15,5 W
3000K
CRI>90
99°
87%
No Dim
IP43
A1970212WT
Textured white
LED
2300 lm
15,5 W
4000K
CRI>90
99°
87%
No Dim
IP43
